25A-D024N114

Revisions: Ser A

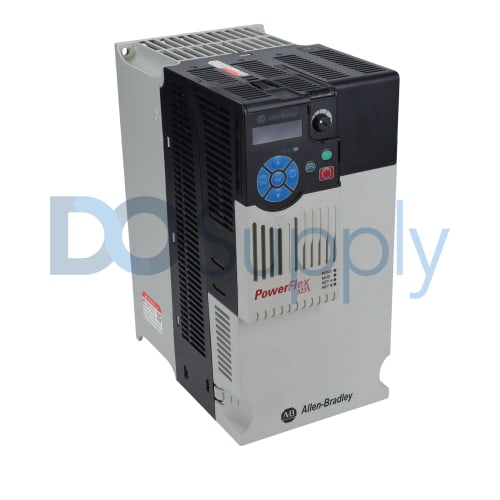

Description: Allen-Bradley PowerFlex 523 AC Drive has Three Phase, 480 VAC voltage and 24 Amperes Output
Available Now
Request a quote for 25A-D024N114

Description: Allen-Bradley PowerFlex 523 AC Drive has Three Phase, 480 VAC voltage and 24 Amperes Output

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 25A-D024N114.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:


Rated 4.8 with 7 reviews

    Technical Specifications for 25A-D024N114

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.25A-D024N114
SeriesPowerFlex 523
VoltageThree Phase, 480 VAC
Output Current24 Amperes
Enclosure TypeIP20 NEMA / Open Type
Interface ModuleStandard
Frame SizeFrame D
EMC Filtering OptionSingle
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.25A-D024N114
SeriesPowerFlex 523
VoltageThree Phase, 480 VAC
Output Current24 Amperes
Enclosure TypeIP20 NEMA / Open Type
Interface ModuleStandard
Frame SizeFrame D
EMC Filtering OptionSingle
s

About 25A-D024N114

The 25A-D024N114 is an AC drive from the PowerFlex 523 family, manufactured by Allen-Bradley. This AC drive is a good solution for machines that call for cost-effective motor control. The voltage applied at the input terminals of the armature winding is around 480 Volts AC and is three-phase. This enables an 11 kW (15 Hp) motor rating control with a 24 A rated output current.



The 25A-D024N114 drive enclosure is IP20 NEMA rated (open); it comes with a multi-language LCD Human Machine Interface (abbreviated to HMI), as well as standard breaking and an integral EMC filter.



The 25A-D024N114 inverter offers standard USB connections for uploading and downloading drive parameter configurations. These configurations can be completed either over the HMI or by using the Connected Components Workbench software tools (which can be downloaded for free). For simple applications, a fast configuration is completed over a five-digit LCD that has an integral keypad. It also has optional communication modules that make it significantly easier to join these drives to a network.



A modular design is one of the main qualities of this device; it can be split up to become a power module and control module. While technicians are installing power module on the machine, it is possible to simultaneously configure a control module (mains free programming).



Some of the control methods supported on the 25A-D024N114 AC drive are PWM, Volts per Hertz, SVC, Economizer SVC.  Its output frequency is approximately 0 to 500 Hertz (programmable). Four programmable acceleration/deceleration times (from 0 to 600 seconds) are available for this motor, which has an overload protection of 110% current overload for up to 60 seconds and 150% current overload for up to 3 seconds Its inputs are broken down as one (1) digital dedicated for stop and four (4) digital programmable, one (1) 10-bit analog (isolated, 0 to 10 Volts and 4 to 20 mA). It has one (1) programmable output relay, one (1) 10-bit analog output (isolated, 0 to 10 Volts and 4 to 20 mA). The 25A-D024N114 measures around 130 x 260 x 212 millimeters (5.12 x 10.24 x 8.35 inches) and weighs approximately 3.9 kilograms (8.6 pounds).



Repair Services for 25A-D024N114

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote
Our highly skilled technicians can repair your 25A-D024N114. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repairs process.

Revisions for 25A-D024N114

Please refer to the manual for more information about the 25A-D024N114 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
25A-D024N114 Ser A
25A-D024N114/A, Series A, Rev A Request Quote
Common misspellings:
  • 25A-Do24N114
  • 25A-D02AN114
  • 25A-D024Nl14
  • 25A-D024N1l4
  • 25A-D024N11A
  • 25AD024N114

Dimensions For 25A-D024N114

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 25A-D024N114

Width (w/Mounting Hardware) 5.12 in. (130.0 mm)
Height (w/Mounting Hardware) 10.24 in. (260.0 mm)
Depth 8.35 in. (212.0 mm)
Mounting Bracket Hole Width 4.57 in. (116.0 mm)
Mounting Bracket Hole Height 9.72 in. (247.0 mm)
Weight 8.6 lb (3.9 kg)

Resolutions For 25A-D024N114

About

Technical Specifications for 25A-D024N114

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.25A-D024N114
SeriesPowerFlex 523
VoltageThree Phase, 480 VAC
Output Current24 Amperes
Enclosure TypeIP20 NEMA / Open Type
Interface ModuleStandard
Frame SizeFrame D
EMC Filtering OptionSingle
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.25A-D024N114
SeriesPowerFlex 523
VoltageThree Phase, 480 VAC
Output Current24 Amperes
Enclosure TypeIP20 NEMA / Open Type
Interface ModuleStandard
Frame SizeFrame D
EMC Filtering OptionSingle

About 25A-D024N114

The 25A-D024N114 is an AC drive from the PowerFlex 523 family, manufactured by Allen-Bradley. This AC drive is a good solution for machines that call for cost-effective motor control. The voltage applied at the input terminals of the armature winding is around 480 Volts AC and is three-phase. This enables an 11 kW (15 Hp) motor rating control with a 24 A rated output current.



The 25A-D024N114 drive enclosure is IP20 NEMA rated (open); it comes with a multi-language LCD Human Machine Interface (abbreviated to HMI), as well as standard breaking and an integral EMC filter.



The 25A-D024N114 inverter offers standard USB connections for uploading and downloading drive parameter configurations. These configurations can be completed either over the HMI or by using the Connected Components Workbench software tools (which can be downloaded for free). For simple applications, a fast configuration is completed over a five-digit LCD that has an integral keypad. It also has optional communication modules that make it significantly easier to join these drives to a network.



A modular design is one of the main qualities of this device; it can be split up to become a power module and control module. While technicians are installing power module on the machine, it is possible to simultaneously configure a control module (mains free programming).



Some of the control methods supported on the 25A-D024N114 AC drive are PWM, Volts per Hertz, SVC, Economizer SVC.  Its output frequency is approximately 0 to 500 Hertz (programmable). Four programmable acceleration/deceleration times (from 0 to 600 seconds) are available for this motor, which has an overload protection of 110% current overload for up to 60 seconds and 150% current overload for up to 3 seconds Its inputs are broken down as one (1) digital dedicated for stop and four (4) digital programmable, one (1) 10-bit analog (isolated, 0 to 10 Volts and 4 to 20 mA). It has one (1) programmable output relay, one (1) 10-bit analog output (isolated, 0 to 10 Volts and 4 to 20 mA). The 25A-D024N114 measures around 130 x 260 x 212 millimeters (5.12 x 10.24 x 8.35 inches) and weighs approximately 3.9 kilograms (8.6 pounds).



Repairs
Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote
Our highly skilled technicians can repair your 25A-D024N114. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repairs process.
Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote
Our highly skilled technicians can repair your 25A-D024N114. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repairs process.
Revisions

Please refer to the manual for more information about the 25A-D024N114 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
25A-D024N114 Ser A
25A-D024N114/A, Series A, Rev A Request Quote

Common misspellings:
  • 25A-Do24N114
  • 25A-D02AN114
  • 25A-D024Nl14
  • 25A-D024N1l4
  • 25A-D024N11A
  • 25AD024N114
PDF
Dimensions

Dimensions For 25A-D024N114

Width (w/Mounting Hardware) 5.12 in. (130.0 mm)
Height (w/Mounting Hardware) 10.24 in. (260.0 mm)
Depth 8.35 in. (212.0 mm)
Mounting Bracket Hole Width 4.57 in. (116.0 mm)
Mounting Bracket Hole Height 9.72 in. (247.0 mm)
Weight 8.6 lb (3.9 kg)
