25C-A011N114

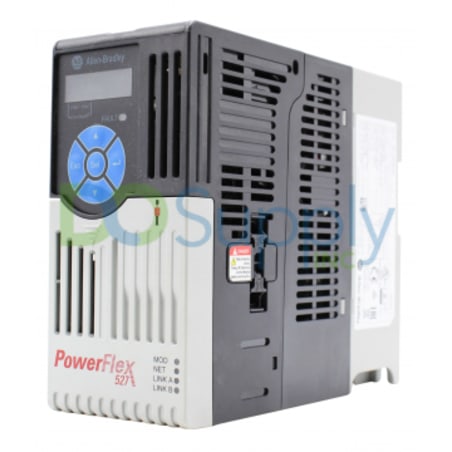

The 25C-A011N114 PowerFlex 527 Adjustable Frequency Drive, is a 3HP, 11A, 240V variable drive by Allen-Bradley built for use with any PAC (Logix Programmable Automation Controller) with an IP20 enclosure and a factory-built EtherNet/IP and safety feature on the network dual port. The drive has a BUS over voltage/under voltage trip of 405/190V DC, with 100ms power ride thru time and with a minimum logic ride thru time of 0.5s. It has -15-10% tolerance of the drive voltage rating, at 47-63Hz with a power factor of 0.98. The 25C-A011N114 has a line filter, supports dynamic braking, and has 100,000A maximum short-circuit rating. It offers the Class 10 motor overload protection, and it offers 200% and 300%, hardware and instantaneous fault limits. It provides signal frequency control via the Sensorless Vector Control (SVC) Economizer, Basic Volts/Hertz, and the Sensorless Vector Control (SVC) control. The 25C-A011N114 also provides velocity loop with the Closed Loop Velocity Vector Control and position loop with the Closed Loop Position Vector Control. It has a default carrier frequency of 4 kHz, but can be adjusted from 2-8 KHz, with a frequency accuracy of ±0.05%, and it offers a V/Hz performance of ±1% of the base speed across a 60:1 speed range, an SVC performance and an SVC Economizer performance of ±0.5% of base speed across a 100:1 speed range. The 25C-A011N114 has 0-240V AC output voltage range, at 0-90Hz (programmable), with a net efficiency of 97.5%, and it has a net power operational power loss of 111W. The drive has four 6mA programmable digital outputs, selectable from Sink (SNK) 0-6V = ON/18-24V = OFF mode to Source (SRC) 18-24V = ON/ 0-6V = OFF mode, via a DIP switch. The 25C-A011N114 also has two 10-bit, ±10V, 4-20 mA analog control inputs with 100-250Ω input impedance, and it features a safety <10mA control with 18-26.4V DC ON-state input voltage, 5V DC OFF-state input voltage, 500A OFF-state input current, 700s Pulse Rejection Width, SELV power supply, and Optical isolation and reverse voltage protection. The 25C-A011N114 has 1 Programmable Form A relay output and 1 Programmable Form B relay output, with 3A at 0.5A at 30V DC, 0.5A at 125V, and 0.5A at 240V AC/30V DC, and 3A at 240V AC inductive/resistive ratings. The drive utilizes an incremental/dual channel encoder, with 5V, 12V, and 250 mA supply ratings, and 90ï‚°, ±27ï‚° Quadrature, with 50% duty cycle. It supports both DIN rail and screw mounting methods, and it can maintain optimal function at a maximum height of 1000m (3300ft). It can resist a 2G vibration, with a 15G operational shock, and it has 53dBA max, sound pressure level. The 25C-A011N114 has a working ambient range of -20-50oC at 0-95% (non-condensing) relative humidity, and it is built for storage under -40-85oC (-40-185oF) range. It comes in dimensions of 72mm x 152mm x 172mm (2.83in x 5.98in x 6.77in) with a net weight of 1.6Kg (3.5lb) and it is RCM, c-UL-us, CE, EAC, KCC and ODVA-certified.
