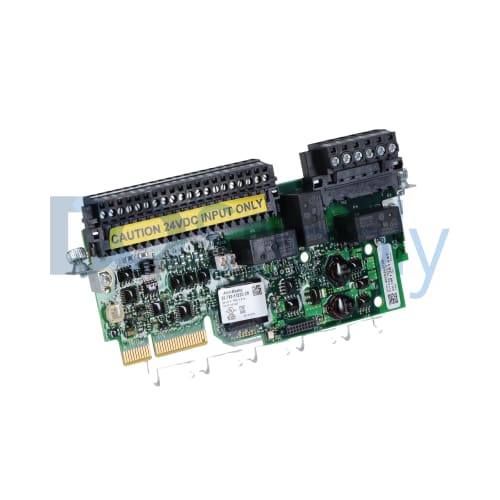

Allen Bradley PowerFlex 750 20-750-1132C-2R

Product image is representative; revision or series may vary. Contact us to request a specific version.

20-750-1132C-2R

|
Need a Specific Revision?

The 20-750-1132C-2R from the Allen Bradley PowerFlex 750 series serves as an I/O module designed for versatile control in automation systems. This module provides two output relays, suitable for both digital and analog I/O functions. Operating at a logic I/O voltage of 24 VDC, it ensures electrical isolation between circuits, enhancing safety and reliability.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 20-750-1132C-2R

ManufacturerAllen Bradley
Product TypeI/O Module
Product LinePowerFlex 750
Part Number20-750-1132C-2R
UPC885630697260
Weight5.00 lbs (2.27 kg)
Number of Output Relays2
I/O TypeDigital, Analog
Logic I/O Voltage24 VDC
Electrical IsolationYes
Status LEDsYes
I/O Line FilteringYes
I/O Line ProtectionYes
Altitude2000 meters
Minimum Operating Temperature–25 °C
Maximum Operating Temperature55 °C
Minimum Storage Temperature–40 °C
Maximum Storage Temperature85 °C
Humidity Tolerance5–95 % RH, non-condensing
EnvironmentNo corrosive gases
Request a Repair

The 20-750-1132C-2R I/O module, part of Allen Bradley's PowerFlex 750 line, is engineered for operational flexibility, accommodating both digital and analog I/O. This module includes two output relays that provide efficient management of control signals. It operates with a logic I/O voltage of 24 VDC, ensuring solid performance in various applications.

Electrical isolation is a standard feature, contributing to overall system safety during operation. Users will find status LEDs present on the module, allowing for a quick assessment of operational status. The module also incorporates I/O line filtering and protection, safeguarding connected components against electrical surges and noise.

Designed for challenging environments, the 20-750-1132C-2R can function effectively at high altitudes up to 2000 meters. It is rated for a minimum operating temperature of -25 °C and can withstand temperatures up to 55 °C. When it comes to storage, it can be maintained in conditions ranging from -40 °C to 85 °C, making it versatile for various applications. Moreover, it tolerates humidity levels from 5% to 95% RH, but should be kept away from corrosive gases to maintain its integrity and performance.
