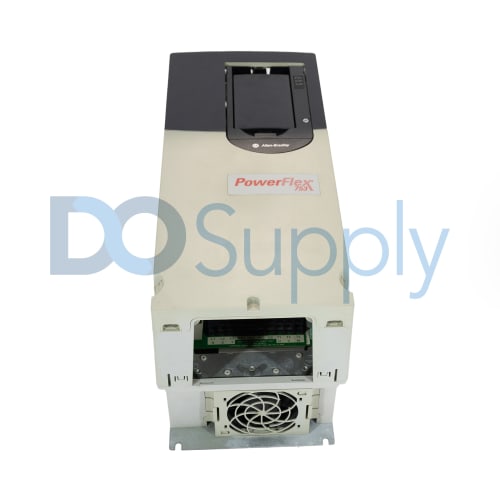

Product image is representative; revision or series may vary. Contact us to request a specific version.
20F11ND040AA0NNNNN
The PowerFlex 753 series features the 20F11ND040AA0NNNNN, an adjustable frequency drive designed for effective motor control applications. This drive operates efficiently within input voltage classes of 400 VAC or 480 VAC, providing significant output capacity.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 20F11ND040AA0NNNNN
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Adjustable Frequency Drive |
| Product Line | PowerFlex 753 |
| Part Number | 20F11ND040AA0NNNNN |
| UPC | 884951161641 |
| Weight | 50.00 lbs (22.68 kg) |
| Cooling Method | Air Cooled |
| Output Current | 40 A ND / 37 A HD (400V), 43 A ND / 51 A HD (480V) |
| EMC Filtering | Included |
| Input Voltage Class | 400 VAC / 480 VAC |
| Output Power | 22 kW ND / 18.5 kW HD (400V), 30 HP ND / 25 HP HD (480V) |
| Common Mode Jumper | Removed |
| Input Voltage Range | 342-440 VAC / 432-528 VAC |
| Enclosure Rating | IP20 / IP00 |
| Frequency Range | 0 to 599 Hz |
| Input Type | AC with Precharge |
| Mounting Style | Open Type |
| Brake Transistor | Internal |
| Input Phase | Three-Phase |
| Ambient Temperature Range | 0°C to 50°C |
The Allen Bradley 20F11ND040AA0NNNNN is part of the PowerFlex 753 adjustable frequency drive line, designed for optimal motor control. This model provides an output voltage capability at a rated current of 40 Amps ND and 37 Amps HD under a 400V configuration, while at 480V, it manages outputs of 43 Amps ND and 51 Amps HD.
Input voltage operation spans from 342 to 440 VAC for 400V applications and 432 to 528 VAC for 480V scenarios. An internal EMC filter enhances electromagnetic compatibility, promoting efficient operation in various environments. The drive features an air-cooling mechanism to ensure optimal temperature management.
The frequency operational range is from 0 to 599 Hz, allowing for flexible speed control in diverse applications. This unit operates on a three-phase input system. A common mode jumper has been removed, providing a straightforward installation experience. Its internal brake transistor supports effective stopping capabilities. With an ambient temperature operating range of 0°C to 50°C, the 20F11ND040AA0NNNNN ensures reliable performance across common industrial conditions. It is designed to be mounted in an open style configuration, fitting well within accessible spaces while maintaining compliance with the IP20/IP00 enclosure ratings.
| Revision Part # | Also known as | |
|---|---|---|
| 20F11ND040AA0NNNNN Ser A | 20F11ND040AA0NNNNN/A, Series A, Rev A | |
| Don't see your particular revision? Contact us now. | ||
- 20F11 N D 040 AA0NNNNN
- 20F11ND040AAONNNNN
- 20F11ND04OAA0NNNNN
- 20F11ND0A0AA0NNNNN
- 20F11NDO40AA0NNNNN
- 20F1IND040AA0NNNNN
- 20FI1ND040AA0NNNNN
- 20FIIND040AA0NNNNN
- 2OF11ND040AA0NNNNN
- 2OF11NDO4OAAONNNNN
- 2OFIINDOAOAAONNNNN
Does the 20F11ND040AA0NNNNN come with a warranty?
Yes, the 20F11ND040AA0NNNNN includes a free 2-year DO Supply warranty. You can upgrade to a 3-year warranty at checkout for even more protection.
What is the Frequency Control method supported by the 20F11ND040AA0NNNNN?
Supported Frequency control method are Volts / Hertz and Sensorless Vector Control.
Does this drive come with an internal braking resistor?
Yes, this drive is installed with braking resistor.
What are the output ratings of the 20F11ND040AA0NNNNN?
For 400V class input, the drive’s Normal duty output ratings are 40 A and 22kW while for Heavy Duty, output ratings are 37 A and 18.5kW. For 460VAC, the drive’s Normal duty output ratings are 43 A and 30HP while for Heavy Duty, output ratings are 51 A and 25HP.
