20G11FE032JA0NNNNN

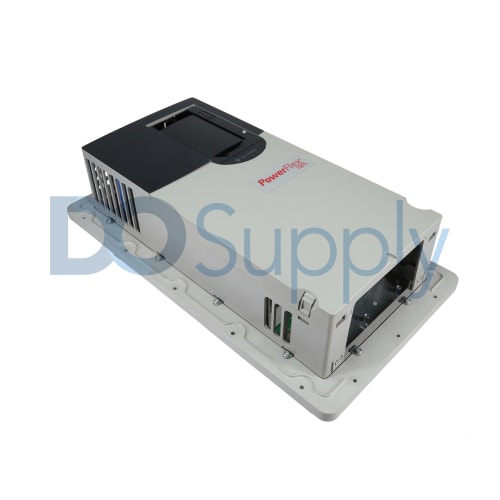

The Allen Bradley 20G11FE032JA0NNNNN is an advanced AC drive that falls under the PowerFlex 755 series, designed for comprehensive motor management and efficient control. This unit has a power rating of 30 horsepower, providing a significant output of 22.4 kW to effectively manage demanding applications. It operates with an input voltage of 600 VAC and handles DC terminals efficiently, making it adaptable to various configurations in industrial environments.

The drive is capable of managing an input line frequency of 50/60 Hz, allowing for compatibility with diverse power systems. Rated at 32 amperes for normal duty, it ensures robust performance in critical applications where reliability is essential. Encased in a NEMA 4X/12 rated housing, the model is designed to withstand environmental challenges while providing protection against moisture, dust, and other contaminants.

For motion control needs, the drive is equipped with dynamic braking facilitated by an internal transistor, thereby diminishing the need for external braking resistors. Additionally, built-in filtering enhances overall performance by minimizing electrical noise. This model features a default jumper installed for the common mode capacitor configuration, which simplifies setup.

Operating conditions for the unit allow functional usability within a temperature range of 0 to 50 °C (32 to 122 °F). For storage, the drive can safely endure conditions ranging from -40 to 70 °C (-40 to 158 °F), providing versatility across different handling and installation practices.

This model does not include a door-mounted human interface module, focusing on core functionality suited for system integration without additional control interfaces. The drive's design is classified under frame size 4, ensuring compact installation while providing comprehensive control capabilities.
