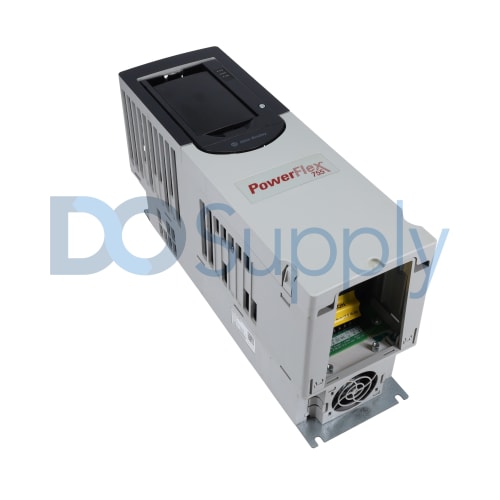

20G11ND3P4AA0NNNNN

The 20G11ND3P4AA0NNNNN is part of the Allen Bradley PowerFlex 755 series, known for its performance in AC drive applications. This model operates with an input configuration that includes AC input with precharging capabilities, which also provides DC terminals. The drive supports a voltage range of 480 VAC and up to 650 VDC, ensuring compatibility with different systems.

It is designed to deliver a continuous power output of 2 HP, corresponding to 1.5 kW, suitable for various industrial motors. The device can handle a normal duty current rating of 3.4 A, allowing for effective current delivery.

The unit's frame size is designated as size 2, giving it a compact form while still providing robust functionality. Its filtering capability is built in, helping to manage electrical noise and enhance system performance. The default configuration for the common mode capacitor is with the jumper removed, which can be adjusted based on application needs.

Dynamic braking is facilitated through an internal transistor, which aids in bringing motors to a stop more efficiently. The drive does not include a door-mounted Human Interface Module (HIM), making it suitable for straightforward installation and integration.

For environmental adaptability, the PowerFlex 755 operates within a temperature range from 0 to 40 °C (32 to 104 °F), and it is capable of withstanding storage temperatures between -40 and 70 °C (-40 to 158 °F). This breadth of operating and storage temperatures allows for flexibility in various settings and conditions.
