Allen Bradley PowerFlex DC Drives SK-20P-S5N10

Product image is representative; revision or series may vary. Contact us to request a specific version.

SK-20P-S5N10

|
Need a Specific Revision?

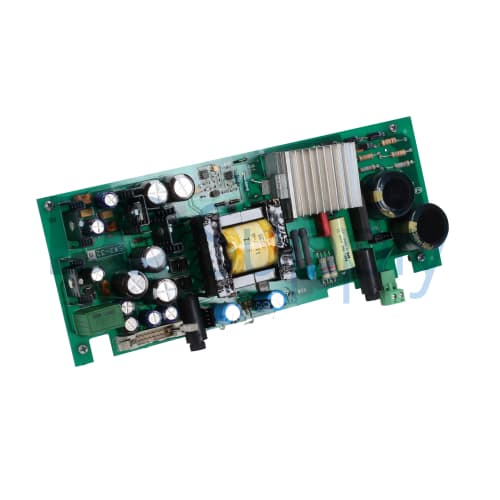

The Allen Bradley SK-20P-S5N10 is a switching power supply board intended for use in PowerFlex DC drives. This component operates at an output voltage of 24 V DC and can handle a maximum output current of 3 A.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for SK-20P-S5N10

ManufacturerAllen Bradley
Product TypeSwitching Power Supply Board
Product LinePowerFlex DC Drives
Part NumberSK-20P-S5N10
UPC820919825903
Weight1.50 lbs (0.68 kg)
Output Voltage24 V DC
Output Current3 A max
Input Voltage120–240 V AC/DC
Screw Torque1–1.2 N·m
InstallationRequires removal of control EMI shield
Overcurrent ProtectionVia fuses
Connector TypeRibbon + screw terminals
ApplicationSingle PowerFlex DC drive per board
Cable Type16-pin ribbon cable
MountingInternal, direct to drive PCB
Request a Repair

The SK-20P-S5N10 from Allen Bradley is engineered as a switching power supply board, specifically tailored for PowerFlex DC drives. It generates a steady output voltage of 24 V DC, with a maximum output current capacity of 3 A. This design makes it suitable for powering individual PowerFlex DC drives.

The board accepts an input voltage range of 120 to 240 V AC/DC, which allows flexibility in various electrical environments. It's critical to ensure that the installation requires the removal of the control EMI shield, allowing for proper setup. The connection setup features both ribbon and screw terminals to accommodate different wiring needs. A 16-pin ribbon cable is utilized for seamless connectivity.

For safety, the board includes overcurrent protection that activates through fuses, ensuring that the functionality remains intact without risking damage from excessive current. The screw torque specifications range from 1 to 1.2 N·m, providing precise guidelines for secure installation. This power supply board is designed for internal mounting directly to the drive PCB, facilitating a compact and efficient configuration within the drive system.
