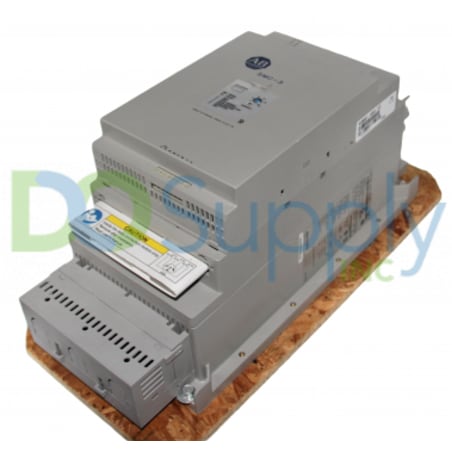

Allen Bradley SMC-3 150-C135NCD

Product image is representative; revision or series may vary. Contact us to request a specific version.

150-C135NCD

|
Need a Specific Revision?

The 150-C135NCD is a smart motor controller within the Allen Bradley SMC-3 series. It supports a robust current rating of 135 A and operates within a voltage range of 200 to 600 VAC, making it adaptable for various applications.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 150-C135NCD

ManufacturerAllen Bradley
Product TypeSmart Motor Controller
Product LineSMC-3
Part Number150-C135NCD
UPC781180871061
Weight26.00 lbs (11.79 kg)
Current Rating135 A
Minimum Input Line Voltage200 VAC
Maximum Input Line Voltage600 VAC
Phase Type3 Phase
Minimum Frequency50 Hz
Maximum Frequency60 Hz
Enclosure TypeOpen Type
Control Voltage100 to 240 VAC
Horsepower @ 60 Hz (with Line Connected Motors)75 to 125 Hp
Horsepower @ 60 Hz (With Delta Connected Motors)60 to 200 Hp
Operating Temperature Range-5 to 50°C
Storage Temperature Range-25 to 85°C
Installation Altitude2000 m
View as PDF
Request a Repair

The Allen Bradley 150-C135NCD smart motor controller falls under the SMC-3 series, designed for efficient motor management. This controller is capable of handling a substantial current rating of 135 A, providing significant operational capacity for various motors. It accepts a minimum input line voltage of 200 VAC and can manage up to 600 VAC, making it suitable for numerous industrial applications.

This device operates effectively with 3-phase electrical systems and encompasses a frequency range of 50 to 60 Hz. Users can connect line connected motors with horsepower ratings ranging from 75 to 125 Hp, while delta connected motors can range from 60 to 200 Hp, allowing flexibility in system design.

For optimal performance, the operating temperature range lies between -5°C and 50°C, allowing it to function effectively in various environments. When not in use, it can be stored safely at temperatures between -25°C and 85°C. The installation altitude is limited to 2000 meters, making this controller an excellent choice for typical indoor industrial applications. Lastly, the enclosure type is open, which facilitates air circulation and cooling during operation.

Revision Part #Also known as
150-C135NCD Ser A150-C135NCD/A, Series A, Rev A
