150-F135FHD

Revisions: Ser A
Description: Solid State Controller with IP65 (Type 4/12) enclosure, 135 A, 100 Hp @ 460V AC Controller Rating, and 200-208V AC, 3-phase, 50 and 60 Hz Input Line
Call
Request a quote for 150-F135FHD

Description: Solid State Controller with IP65 (Type 4/12) enclosure, 135 A, 100 Hp @ 460V AC Controller Rating, and 200-208V AC, 3-phase, 50 and 60 Hz Input Line

Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for Allen Bradley.

top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 150-F135FHD.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 5 with 7 reviews

    Technical Specifications for 150-F135FHD

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.150-F135FHD
Product LineSMC-Flex
Bulletin NumberSolid State Controller
Enclosure TypeIP65 (Type 4/12)
Controller Rating135 A, 100 Hp @ 460V AC
Input Line Voltage200-208V AC, 3-phase, 50 and 60 Hz
Control Voltage100-240V AC (5-480 A units)
Rated Voltage200/208V AC
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.150-F135FHD
Product LineSMC-Flex
Bulletin NumberSolid State Controller
Enclosure TypeIP65 (Type 4/12)
Controller Rating135 A, 100 Hp @ 460V AC
Input Line Voltage200-208V AC, 3-phase, 50 and 60 Hz
Control Voltage100-240V AC (5-480 A units)
Rated Voltage200/208V AC
s

About 150-F135FHD

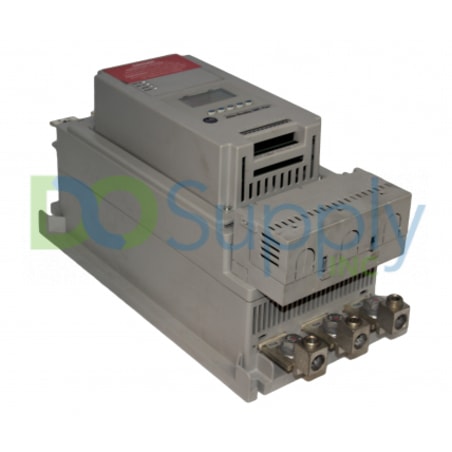

The Allen-Bradley 150-F135FHD is an SMC Flex controller compatible with Wye-Delta, or 6-lead motors and three-phase squirrel cage induction motors.  This controller features several modes of operation that users can choose from, and these are full voltage start, soft start with selectable kickstart, dual ramp start with selectable kickstart, current limit with selectable kickstart, soft stop, linear speed acceleration with selectable kickstart that requires a Tach feedback, and preset slow speed. The 150-F135FHD controller also has its own protective features, and these are overload, underload, overvoltage, undervoltage, ground fault, stall protection and detection, overtemperature, thermistor or PTC protection, excessive starts per hour, line faults, and open gate. The braking control of this controller consists of accu-stop, smart motor braking or SMC, and slow speed with braking.







Also featured on the 150-F135FHD controller is a 16-character LCD that comes with a backlight and serves to let the user identify the controller’s current parameters. For input, this controller makes use of the keypad that has 5 buttons present, specifically an enter key, a select key, and an escape key. Its controller rating at 460V AC is 100 HP and 135 A, while its input line voltage ranges from 200 to 208V AC at a frequency of 50 to 60 Hz and the control voltage is 100 to 240V AC. At the rated voltage, it has a motor current that ranges from 34 to 135 A and a maximum HP rating of 40 HP at 60 Hz. It is recommended to use the 150-F135FHD controller at an altitude of not more than 2000 m and temperature of -5 to 40 °C. When keeping it in storage or transporting, make sure that the room temperature is between -20 to 75 °C.



Repair Services for 150-F135FHD

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote
Our highly skilled technicians can repair your 150-F135FHD. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.

Revisions for 150-F135FHD

Please refer to the manual for more information about the 150-F135FHD such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
150-F135FHD Ser A
150-F135FHD/A, Series A, Rev A Request Quote
Common misspellings:
  • l50-F135FHD
  • 15o-F135FHD
  • 150-Fl35FHD
  • 150F135FHD

Dimensions For 150-F135FHD

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 150-F135FHD

Width 7.74 in. (196.4 mm)
Height 17.47 in. (443.7 mm)
Depth 8.35 in. (212.2 mm)
Approx Ship. Wt. 33 lb (15 kg)
