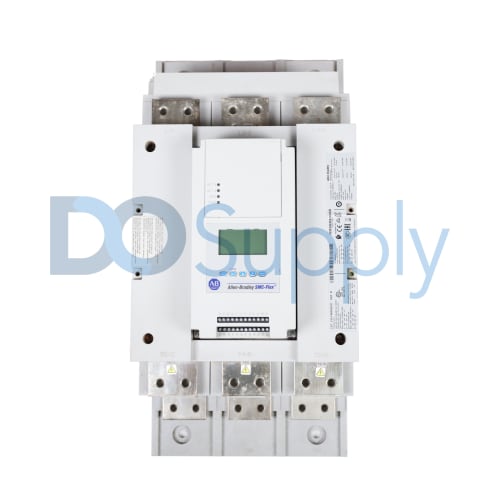

Allen Bradley SMC-Flex 150-F480NBDD

Product image is representative; revision or series may vary. Contact us to request a specific version.

150-F480NBDD

|
Need a Specific Revision?

The 150-F480NBDD from Allen Bradley serves as a smart motor controller with multiple features. It operates within a control voltage range of 100 to 240 Volts AC and supports heavy-duty motor applications up to 400 horsepower.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 150-F480NBDD

ManufacturerAllen Bradley
Product TypeSmart Motor Controller
Product LineSMC-Flex
Part Number150-F480NBDD
UPC662073047902
Control Voltage100 to 240 Volts AC
Current Rating480 Amps at 460 Volts AC
Power Rating200 to 400 Horsepower at 460 Volts AC
Number of Auxiliary Contacts4
Type of ContactsProgrammable Normally Open (NO) and Normally Closed (NC) Contacts
Number of Poles3
Insulation VoltageRated 500 Volts per IEC
Maximum Number of Sensors6
Operating Frequency50/60 Hz
Rated Impulse Voltage6000 Volts per IEC
Operating Temperature Range-5 to 50 degrees Celsius when Open; -5 to 40 degrees Celsius when Enclosed
Request a Repair

Designed as part of the SMC-Flex series, the Allen Bradley 150-F480NBDD smart motor controller is an essential component for controlling industrial motors. This device handles control voltages between 100 and 240 Volts AC, making it versatile for various electrical setups. It can manage a substantial current of 480 Amps specifically at 460 Volts AC, proving its capability in demanding applications. The power range supported spans from 200 to 400 horsepower at 460 Volts AC, accommodating a variety of motor sizes and types.

This model incorporates four auxiliary contacts, which can be programmed as normally open (NO) or normally closed (NC), providing additional functionality to enhance operational flexibility. Comprising three poles, the design meets industrial wiring standards efficiently. Its rated insulation voltage is classified at 500 Volts per IEC standards, ensuring robust electrical isolation under varying conditions.

Supporting a maximum of six sensors, the 150-F480NBDD enables comprehensive monitoring and feedback capabilities. The operating frequency is adaptable, accommodating both 50 and 60 Hertz systems, making it suitable for numerous applications. Additionally, the controller boasts a rated impulse voltage of up to 6000 Volts per IEC, contributing to its durability and reliability in field use.

Environmental considerations have not been overlooked. The operating temperature range accommodates between -5 to 50 degrees Celsius when the unit is open; enclosed, it adjusts to a maximum of 40 degrees Celsius. The dimensions of the controller measure 290 mm in width, 276.5 mm in depth, and 600 mm in height, allowing for straightforward installation within existing panel configurations. Weighing 101 lbs (45.8 kg), the smart motor controller provides substantial capabilities in a robust modular format.
