100-D140D00

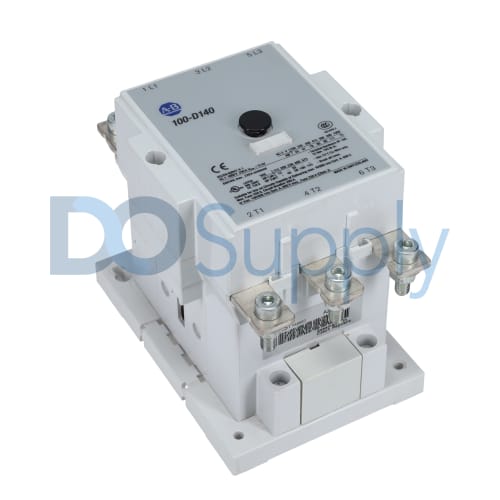

The 100-D140D00 is a non-reversing contactor from Allen-Bradley’s bulletin 100-D of IEC magnetic contractors. This electrical device is primarily used in motor control applications which is one of the most typical control elements in the industry. The 100-D140D00 comes with a conventional coil with a coil voltage rating of 110 VAC at 50 Hz supply voltage frequency and 120 VAC at 60 Hz frequency. This magnetic contactor has 3-poles, capable of being used in 3-Phase and 1-Phase power systems. The 100-D140D00 has an operating current of 140 Amperes. It is especially compatible with Allen-Bradley’s Bulletin 193 product family of electronic overload relays, both product series having compact and simple-to-install assemblies. The 100-D140D00 supports direct panel mounting via the mounting tabs screw holes pre-molded to the contactor’s frame. The 100-D140D00 has integral auxiliary contacts specifically, One (1) Normally Open and One (1) Normally Closed (N.C.) contacts. This pair of contacts is typically used in providing contactor operational feedback such as wiring to a pilot lamp and as an input to a Programmable Logic / Automation Controller (PLC / PAC). It may also be used to implement automated sequencing and interlocking of other electrical circuits. At 50 Hz supply voltage frequency, the 100-D140D00 has AC switching motor ratings of 40 kilowatts at 200 Volts, 45 kilowatts at 230 Volts, 78 kilowatts at 400 Volts, 82 kilowatts at 415 Volts, 80 kilowatts at 500 Volts, 111 kilowatts at 690 Volts, and 75 kilowatts at 1000 Volts; At 60 Hz voltage, it has AC motor switching frequency of 50 Hp at 230 Volts, 100 Hp at 460 Volts and 125 Hp at 575 Volts.

The 100-D140D00 Contactor is an IEC Non-Reversing Contactor that has been designed and manufactured by Allen Bradley/Rockwell Automation and it belongs to the Allen-Bradley Bulletin 100-D product series. This IEC non-reversing contactor is a 100-D series Allen-Bradley IEC contactor that has 3 poles, supporting 3-phase power systems, a current rating of 140 Amps, and a coil voltage rating of 600 Volts. Other specifications of this contactor include output power ratings of 40 Horsepower at 200 Volts, 50 Horsepower at 230 Volts, 100 Horsepower at 460 Volts, and 125 Horsepower at 575 Volts. The 100-D140D00 IEC Non-Reversing Contactor has a coil voltage of 110 Volts AC at 50 Hertz or 120 Volts AC at 60 Hertz. This AC magnetic contactor is designed for use with the Allen-Bradley Bulletin 100-D series motor control systems The Allen-Bradley 100-D140D00 Non-Reversing Contactor features electronic and conventional coils which support AC voltage. Other notable features of this contactor include its integrated PLC interface, its low power pick-up and hold-in function, its wide range of voltages, and a wide range of accessories for special applications. Additionally, the Bulletin 100-D IEC contactors like the 100-D140D00 Non-Reversing Contactor are environmentally friendly and feature compact dimensions. It is made to be a flexible starter component that is compatible with several Allen-Bradley Bulletin 100-D, Bulletin 104-D, and Bulletin 193 series devices. The 100-D140D00 Non-Reversing Contactor is certified and listed for compliance with the CE, cULus, CCC, UL, CSA, and IEC standards, and it also meets the material restrictions and requirements for the EU RoHS Directive 2011/65/EU.
