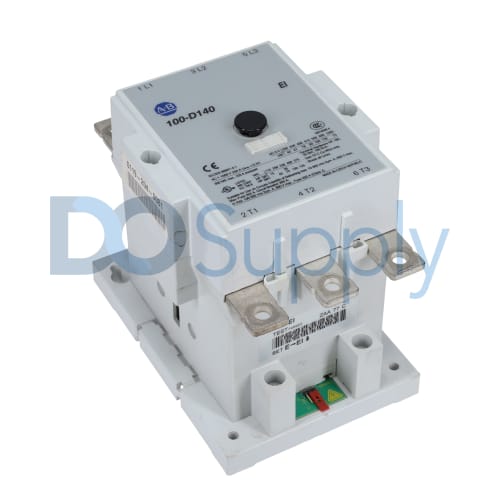

Allen Bradley 100 Contactors 100-D140ED00

Product image is representative; revision or series may vary. Contact us to request a specific version.

100-D140ED00

|
Need a Specific Revision?

The Allen Bradley 100-D140ED00 is a robust contactor designed for industrial applications. This unit efficiently operates within a voltage rating of up to 690 Volts AC and can handle a current load of 115 Amperes, making it suitable for demanding environments.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 100-D140ED00

ManufacturerAllen Bradley
Product TypeContactor
Product Line100 Contactors
Part Number100-D140ED00
Weight10.00 lbs (4.54 kg)
UPC781180102233
Rated Voltage690 Volts AC
Rated Current115 Amperes
Number of Phases3-phase
Protection RatingIP00 (open-type enclosure)
Maximum Current140 Amperes
Electronic Coil Voltage110 to 130 Volts AC/DC
Rated Impulse Withstand Voltage12 kilovolts
Mechanical Life CyclesUp to 10,000,000 operations
Input Frequency50 to 60 Hertz
Number of Poles3 poles
Main Circuit Electrical ConnectionScrew connection
Maximum Switching Frequency120 operations per hour
Coil Insulation ClassClass B
Request a Repair

The 100-D140ED00 from Allen Bradley represents a reliable choice among contactors within the 100 series. Designed for robustness, it operates effectively at a rated voltage of 690 Volts AC and manages a current load of 115 Amperes. This unit is structured for 3-phase configurations with three poles, enhancing its versatility in various setups.

Protection is provided by an IP00 rating, as it is housed in an open-type enclosure. The contactor can endure a maximum current of 140 Amperes. For the electronic coil, the voltage operates between 110 to 130 Volts, accommodating both AC and DC applications.

This contactor also boasts a rated impulse withstand voltage of 12 kilovolts, ensuring resilience against voltage spikes in demanding applications. Mechanical durability is impressive, supporting up to 10 million operations, which reduces maintenance needs significantly. It can handle switching operations at a maximum frequency of 120 times per hour, reflecting its efficiency. The insulation for the coil is classified as Class B, which contributes to the reliability of the unit in fluctuating temperature conditions. Lastly, main circuit electrical connections utilize a reliable screw connection type for secure and effective integration.
