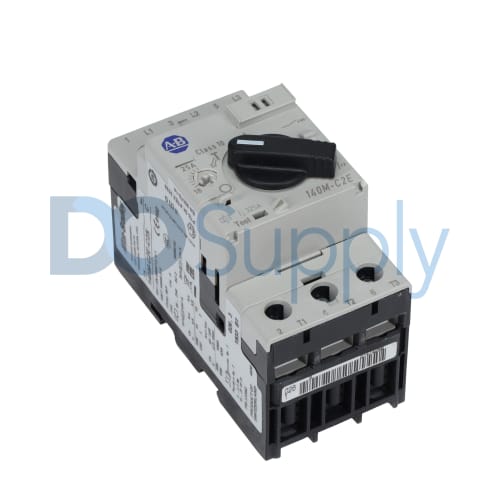

Allen Bradley 140M Circuit Breakers 140M-C2E-C25

Product image is representative; revision or series may vary. Contact us to request a specific version.

140M-C2E-C25

|
Need a Specific Revision?

The 140M-C2E-C25 is a circuit breaker within the Allen Bradley 140M Circuit Breakers series, specifically designed for effective current management. Rated for an operational current of 25 Amps, it can adjust between thermal and magnetic disconnects.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 140M-C2E-C25

ManufacturerAllen Bradley
Product TypeCircuit Breaker
Product Line140M Circuit Breakers
Part Number140M-C2E-C25
UPC662468964395
Weight2.00 lbs (0.91 kg)
Frame SizeFrame C
Rated Operating Current25 Amps
Normal OperationAdjustable Thermal/Fixed Magnetic
Overload Release Current Setting18 Amps
Rated Short-Circuit Breaking Capacity15 kA at 400V AC (Icu)
Rated Operating Power (400V AC, 3-Phase)11 kW
Rated Operating Power (230V AC, 3-Phase)5.5 kW
Integrated Auxiliary SwitchNone
Magnetic Release Current325 Amps (IEC)
Short Circuit Current (Type 2 Coord.)5 kA at 600V
Ultimate Short Circuit Breaking Cap.65 kA at 230/240V (IEC)
Ambient Operating Temperature-25 °C
Degree of Protection (IP)IP2X
Request a Repair

The Allen Bradley 140M-C2E-C25 circuit breaker is designed to provide robust protection in electrical systems. This unit is classified as Frame C and supports a rated operational current setting of 25 Amps. It operates under an adjustable thermal and fixed magnetic release mechanism, making it versatile for various applications.

The device has a release current setting of 18 Amps for overload protection, allowing it to respond accurately to varying load conditions. The circuit protector features a rated short-circuit breaking capacity of 15 kA when operating at 400V AC, adding a layer of safety in high-energy environments. Furthermore, this breaker has rated operating powers of 11 kW at 400V AC and 5.5 kW at 230V AC, making it suitable for industrial applications with diverse energy needs.

According to IEC standards, the circuit breaker includes a magnetic release current of 325 Amps, ensuring effectiveness during fault conditions. It also conforms to Type 2 coordination and signifies a short circuit current of 5 kA at 600V. Its ultimate short circuit breaking capability reaches up to 65 kA at voltage levels of 230 to 240V, assuring substantial electrical faults.

Operating efficiently with an ambient temperature as low as -25 °C, the 140M-C2E-C25 circuit breaker is designed for reliability in colder climate conditions. This unit is rated with IP2X protection, indicating its suitability for many industrial environments while safeguarding internal components from objects larger than 12 mm. The 140M-C2E-C25 is engineered to ensure safe electrical system operations with impressive specifications.
