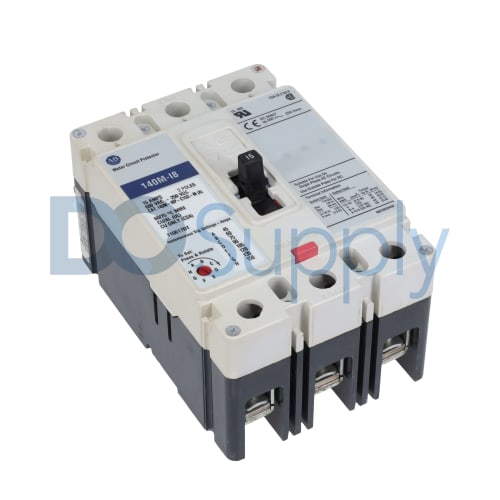

Allen Bradley 140M Circuit Breakers 140M-I8P-C15S-M

Product image is representative; revision or series may vary. Contact us to request a specific version.

140M-I8P-C15S-M

|
Need a Specific Revision?

The Allen-Bradley 140M-I8P-C15S-M circuit breaker comes with a visual trip indicator. It has a high switching capacity.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 140M-I8P-C15S-M

ManufacturerAllen Bradley
CategoryMotors
Product Line140M Circuit Breakers
Part Number140M-I8P-C15S-M
UPC662074968725
Weight4.50 lbs (2.04 kg)
DescriptionMolded Case Circuit Breaker
MountBolt In
Voltage480 Volts AC
Current15 Amperes
Frequency60 Hertz
Trip range45-150 Amps
Horsepower1.5-2/3-5 HP
Lifespan rating25000 operations
Temperature-25/60 degrees Celsius
Request a Repair

The 140M-I8P-C15S-M circuit breaker is a motor protection circuit breaker device that helps to disconnect the circuit and provide short circuit magnetic protection and overload thermal protection and it also helps with manual switching. The circuit breaker offers a visible trip indication feature which makes it easier to determine the trip. The circuit breaker has a voltage rating of 480 Volts AC and a current rating of 15 Amps. This I Frame circuit breaker has a high breaking magnetic/thermal trip. The breaker runs with a frequency of 60 Hertz. The 140M-I8P-C15S-M circuit breaker has a trip range from 45 to 150 Amps. The power rating of the circuit breaker is 1.1 to 1.5 Horsepower of output at 220 to 230 Volts AC, 1.5 to 2 Horsepower of output at 230 Volts AC, and 3 to 5 Horsepower of output at 460 Volts AC. It is mainly used for thermal overload protection.

The 140M-I8P-C15S-M circuit breaker has line side and load side lug terminals. It can be used with the NEMA Size 1 combination starters, soft starter controllers, and the Allen-Bradley variable frequency AC drives. The terminal is made up of non-aluminum material. The front side of the breaker is equipped with a lever to turn it on and off manually. A bolt-in mount is used to mount the circuit breaker. The ambient environment temperature should lie between -25 and 60 degrees Celsius for operation, and between -40 and 80 degrees Celsius for storage. The circuit breaker uses a bimetallic element for a thermal trip action which deflects the current flow through the circuit for a longer period of time. The 140M-I8P-C15S-M circuit breaker has a lifespan rating of more than 25,000 operations. The minimum clearances should be provided during the mounting of the circuit breaker to allow enough airflow.
