Allen Bradley 1494 Disconnect Switches 1494U-LM31

Product image is representative; revision or series may vary. Contact us to request a specific version.

1494U-LM31

|
Need a Specific Revision?

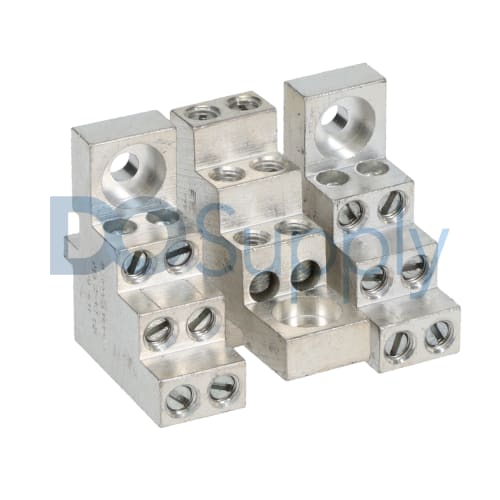

The Allen Bradley 1494U-LM31 is a lug connector designed for use with disconnect switches rated between 30 to 100 amperes. Featuring a robust aluminum construction, this connector supports a multi-port configuration with six ports, allowing for versatile connectivity across various applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1494U-LM31

ManufacturerAllen Bradley
Product TypeLug Connector
Product Line1494 Disconnect Switches
Part Number1494U-LM31
Weight0.19 lbs (0.09 kg)
UPC887172368974
Material TypeAluminum
Disconnect Switch Rating30 to 100 Amperes disconnect switches
Number of Ports6 ports (multi-port)
Conductor Size14 to 4 American Wire Gauge (AWG) for copper conductor, 12 to 4 American Wire Gauge (AWG), and 10 American Wire Gauge (AWG) for copper-aluminum conductor
Quantity Per Set3 units
Number of Poles3 poles
Recommended Torque For Conductor Into Lug45 to 50 inch-pounds
Recommended Torque For Lug To Terminal40 to 60 inch-pounds
Dielectric Strength2,200 Volts for 1 minute
Operational Elevation2,000 meters (6,561.68 feet) above sea level
Working Temperature-20°C to 60°C (-4°F to 140°F)
Request a Repair

The Allen Bradley 1494U-LM31 serves an essential function as a lug connector within the 1494 series of disconnect switches. This component is made from aluminum, contributing to its overall durability and effectiveness in electrical applications. The unit has a disconnect switch rating of 30 to 100 amperes, suitable for handling both light and heavy current loads.

It features a multi-port design with a total of six ports, allowing for efficient wiring configurations. The product accommodates various conductor sizes; it is compatible with copper conductors ranging from 14 AWG to 4 AWG, and for copper-aluminum conductors, it accepts 12 AWG to 4 AWG and 10 AWG.

Each set includes three units, ideal for deployment in multi-pole applications, with a specification of three poles. The recommended torque settings for installation involve tightening conductors into the lug at 45 to 50 inch-pounds, while securing the lug to the terminal should be done at 40 to 60 inch-pounds to ensure solid connections.

With a dielectric strength of 2,200 volts maintained for one minute, this connector assures reliable insulation in operation. Additionally, the operational elevation capability of the 1494U-LM31 extends to 2,000 meters (approximately 6,561.68 feet) above sea level, catering to various installation scenarios.

The device operates effectively across a temperature range of -20°C to 60°C (-4°F to 140°F), making it adaptable to both indoor and outdoor environments. Together, these specifications highlight the 1494U-LM31's robust performance and versatility in electrical infrastructure.
