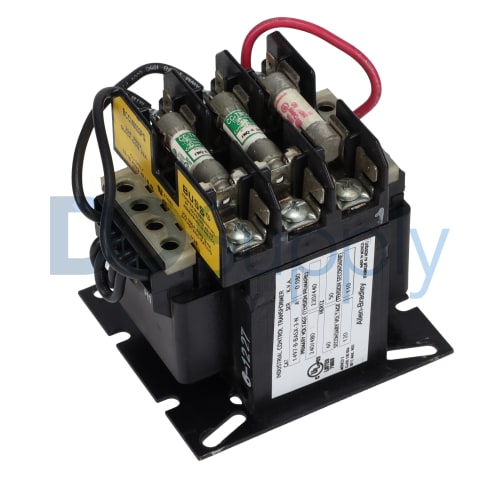

Allen Bradley 1497 Transformers 1497-B-BASX-3-N

Product image is representative; revision or series may vary. Contact us to request a specific version.

1497-B-BASX-3-N

|
Need a Specific Revision?

The 1497-B-BASX-3-N from Allen Bradley is a control circuit transformer engineered for efficient voltage management. It functions within primary voltage ranges of 220 to 440 volts at 50 Hz and 240 to 480 volts at 60 Hz, providing consistent output for various applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1497-B-BASX-3-N

ManufacturerAllen Bradley
Product TypeControl Circuit Transformer
Product Line1497 Transformers
Part Number1497-B-BASX-3-N
Weight4.50 lbs (2.04 kg)
UPC611320500721
Primary Voltage at 50 Hz220 to 440 V
Primary Voltage at 60 Hz240 to 480 V
Secondary Voltage at 50 Hz110 V
Secondary Voltage at 60 Hz120 V
Apparent Power80 VA
Fuse BlockTop Mounted
Primary Poles2 Primary Poles
Secondary Poles1 Secondary Pole
Conductor MaterialCopper
Short-Circuit ProtectionNo
Request a Repair

The 1497-B-BASX-3-N is a control circuit transformer produced by Allen Bradley, designed to deliver reliable voltage regulation for various circuits. It operates efficiently at primary voltage levels, ranging from 220 V to 440 V at 50 Hz, and 240 V to 480 V at 60 Hz. This flexibility allows for widespread application across different electrical systems.

The transformer provides a secondary output voltage of 110 V for 50 Hz applications and 120 V for those running at 60 Hz. The apparent power output of this unit is rated at 80 VA, ensuring ample power capacity for standard control circuit operations. Its top-mounted fuse block contributes to ease of installation and maintenance, allowing for quick access when needed.

The design includes two primary poles, enabling the transformer to handle the required input power effectively. In contrast, the single secondary pole is tailored for straightforward connectivity to the load. Copper conductors are utilized to ensure optimal conductivity, delivering efficient energy transfer throughout its operation. It is important to note that this unit does not include built-in short-circuit protection, so external protection measures should be considered during installation and usage.
