1792D-4BVT4D

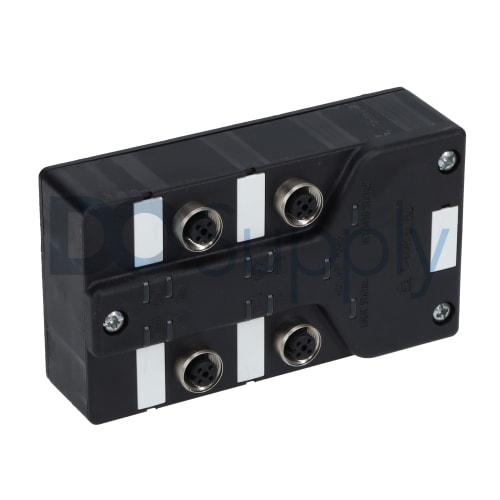

The Allen-Bradley 1792D-4BVT4D input module is a 1792D ArmorBlock MaXum 4-output and 4-input module. The 1792D-4BVT4D input module is a 24 Volts DC I/O device which communicates over the DeviceNet network. The 1792D-4BVT4D input module is available in a sealed housing and it does not require an enclosure. Input and outputs on the module are accessed via a Y splitter cable. The inputs on the module are 24 Volts DC PNP sourcing type or NPN sinking type inputs. The outputs on the module can source a maximum of 1 Amp of current each. The 1792D-4BVT4D input module supports multiple diagnostic features including open wire, short circuit, and no load detection features. The module package contains one 1792D-4BVT4D module and installation instructions. The cables required for use with the module need to be ordered separately.

Four steps are required to set up the Allen-Bradley 1792D ArmorBlock MaXum 1792D-4BVT4D input module. These steps include assigning the node address, mounting the module to the cable base, connecting the cord sets, and communicating with the module. The input specifications for the module are as follows. The sensor source current per connection on the module must be 100 milliamps. The off-wire sense current rating is 0.5 milliamps. The maximum on-state voltage is 25 Volts DC and the minimum on-state voltage is 10 Volts DC. The maximum on-state current is 10 milliamps and the minimum on-state current is 2 milliamps. The maximum off-state voltage is 5 Volts DC and the minimum off-state current is 1.5 milliamps. With thick cables, the 1792D-4BVT4D input module can communicate at 125 kbps at up to 1600 feet, at 250 kbps at up to 600 feet, and at 500 kbps at up to 330 feet.
