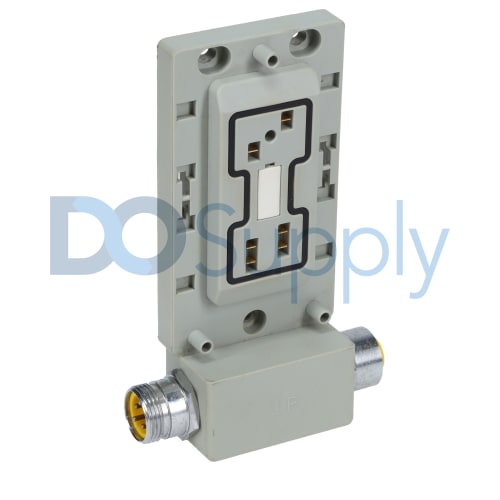

Allen Bradley 1792D ArmorBlock MaXum I/O 1792D-CB18JP

Product image is representative; revision or series may vary. Contact us to request a specific version.

1792D-CB18JP

|
Need a Specific Revision?

The 1792D-CB18JP is an interface base designed for use with DeviceNet networks in the Allen Bradley 1792D ArmorBlock MaXum I/O series. It features a sealed housing and offers IP67 ingress protection, making it suitable for harsh environments.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1792D-CB18JP

ManufacturerAllen Bradley
Product TypeInterface Base
Product Line1792D ArmorBlock MaXum I/O
Part Number1792D-CB18JP
Weight0.75 lbs (0.34 kg)
Network ProtocolDeviceNet
Trunk ConnectionRound Media
Connector TypeM12
Port ConfigurationPass-through
Auxiliary PowerJumpered from network power
Ingress ProtectionIP67
Module MountingCaptive screw
HousingSealed
Operating Voltage11-25V DC
Supported Baud Rates125, 250, 500 kbps
Current Capacity≈ 8 A max
Load CapacityStd. module limit
Request a Repair

The Allen Bradley 1792D-CB18JP serves as an interface base specifically crafted for DeviceNet networking. This unit is adept at managing network connections through its round media trunk connection and employs M12 connectors for reliable interfacing. The design includes a pass-through port configuration, facilitating efficient connections within the system.

In terms of operational capabilities, the 1792D-CB18JP supports baud rates of 125, 250, and 500 kbps, ensuring compatibility with various network speeds. Its operating voltage sits within the range of 11 to 25 volts DC, while the current capacity can reach approximately 8 Amps at maximum. The unit addresses power needs by allowing auxiliary power to be jumpered from the network itself.

Designed for durability, this interface base is housed in a sealed casing that upholds a high ingress protection rating of IP67, which means it can withstand exposure to dust and water. For module attachment, it employs a captive screw mechanism, ensuring secure mounting on the panel. Additionally, it adheres to standard load capacities as outlined in module specifications, reinforcing its reliability for various applications.
