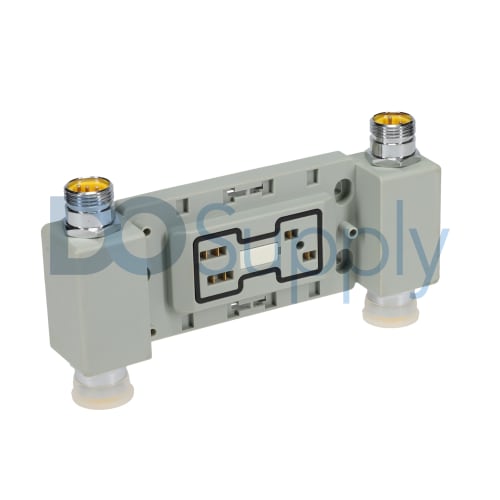

Allen Bradley 1792D ArmorBlock MaXum I/O 1792D-CB18PT

Product image is representative; revision or series may vary. Contact us to request a specific version.

1792D-CB18PT

|
Need a Specific Revision?

The 1792D-CB18PT, part of the Allen Bradley ArmorBlock MaXum series, is an I/O cable base designed for efficient connectivity. It allows for the attachment of up to 4 connector modules and supports a variety of connector types, including both 18 mm round and flat media connectors.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1792D-CB18PT

ManufacturerAllen Bradley
CategoryMotors
Product Line1792D ArmorBlock MaXum I/O
Part Number1792D-CB18PT
Weight3.00 lbs (1.36 kg)
DeviceI/O Cable Base
Connector Module Capacity4 Connector Modules
Connector Types18 mm Round and Flat Media Connectors
DeviceNet Passthrough FeatureSupported
Auxiliary Power I/O ConnectionsSupported
4-Pin Auxiliary Output Power In ConnectorIncluded
4-Pin Auxiliary Output Power Out ConnectorIncluded
5-Pin DeviceNet In ConnectorIncluded
5-Pin DeviceNet Out ConnectorIncluded
Point Connector Cables with Right-Angle ConnectorsSupported
Request a Repair

The 1792D-CB18PT is an I/O cable base developed by Allen Bradley within the ArmorBlock MaXum I/O series. This component is explicitly designed to facilitate the interconnection of various devices and devices within a connected system. It supports a maximum of four connector modules, enabling flexibility in configuring connections based on application needs.

The cable base is compatible with 18 mm round and flat media connectors, which can simplify setup and enhance connectivity. Among its features is the DeviceNet passthrough capability, allowing data to flow between different network segments without interruption. The unit also accommodates auxiliary power I/O connections.

Included are two types of connectors: a 4-pin auxiliary output power input and a 4-pin auxiliary output power output. Additionally, the assembly provides a 5-pin DeviceNet input connector and a 5-pin DeviceNet output connector, ensuring several options for integrating into a networked environment.

This device supports point connector cables that come with right-angle connectors, facilitating easier installation in confined spaces. Overall, the 1792D-CB18PT enhances the versatility of control systems by providing essential connectors and straightforward integration for various applications.
