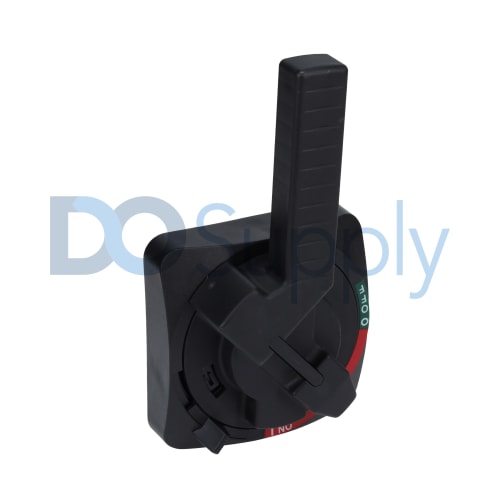

Allen Bradley 194R Switches 194R-HM4

Product image is representative; revision or series may vary. Contact us to request a specific version.

194R-HM4

|
Need a Specific Revision?

The 194R-HM4 is a handling accessory designed for use with Allen Bradley switches, specifically within the 194R series. This product offers a standard orientation featuring a defeater and operates in dual positions: ON and OFF. It is constructed from durable plastic and boasts a black and gray color scheme. Furthermore, it is specifically engineered for door-mounted applications.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 194R-HM4

ManufacturerAllen Bradley
Product TypeHandling Accessory for Switches
Product Line194R Switches
Part Number194R-HM4
UPC662072460085
Weight0.94 lbs (0.43 kg)
Orientation TypeStandard orientation with defeater
PositionsON / OFF (dual position)
ColorBlack / Gray
MaterialPlastic
Mounting TypeDoor-mounted
NEMA RatingNEMA Type 3R, 3, 12, 4, 4X
IP ProtectionIP66
Compatible SwitchesNon-fused 125...630 A (IEC) and 100...400 A (UL) Disconnect Switches
Humidity Tolerance80% non-condensing
Installation Altitude1000 MSL
Request a Repair

The Allen Bradley 194R-HM4 serves as an essential handling accessory tailored for the 194R switch series. Designed primarily for door-mounted applications, this component features a standard orientation with a defeater mechanism for enhanced control. It allows users to easily toggle between dual positions: ON and OFF, improving operational efficiency.

The 194R-HM4 is constructed from sturdy plastic, offering durability in varying conditions. It comes in an attractive black and gray finish, making it suitable for both industrial and commercial settings. One of its significant advantages is the broad compatibility with a variety of non-fused disconnect switches, accommodating both IEC ratings from 125 to 630 A and UL ratings from 100 to 400 A.

To ensure durability in harsh environments, the 194R-HM4 meets the specifications of NEMA Type 3R, 3, 12, 4, and 4X ratings. With an IP66 protection rating, this accessory is well-equipped to guard against dust and water exposure. Its operational capabilities extend to environments with up to 80% humidity (non-condensing), making it versatile for numerous applications. Lastly, it is meant for installation at altitudes not exceeding 1000 MSL, comfortably fitting within the parameters of standard operational settings.
