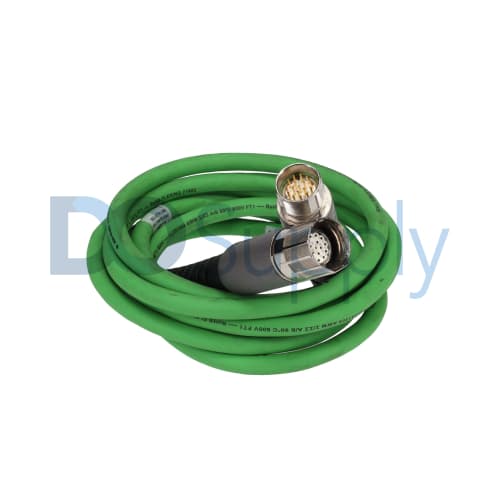

Allen Bradley 2090 Cables 2090-CPM7E7-16AF03

Product image is representative; revision or series may vary. Contact us to request a specific version.

2090-CPM7E7-16AF03

|
Need a Specific Revision?

The 2090-CPM7E7-16AF03 from Allen Bradley is a specialized cable designed for use in Kinetix and MP-Series motor applications. This cable extends to a length of 3 meters and is constructed with a conductor size of 16 AWG, consisting of four wires designated for power and braking functions.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2090-CPM7E7-16AF03

ManufacturerAllen Bradley
Product TypeCable
Product Line2090 Cables
Part Number2090-CPM7E7-16AF03
Weight0.13 lbs (0.06 kg)
Cable Length3 m
Conductor Size16 AWG
Wire Count4 (power & brake)
Cable TypeContinuous-flex Jacket
Jacket MaterialThermoplastic Orange
Connector (Motor End)SpeedTec DIN Connector
Connector (Drive End)Extension receptacle (SpeedTec ready)
Voltage Rating600 V
ApplicationsKinetix/MP-Series motors
Flex LifeContinuous motion suitable
Bend Radius (mm)117 mm
Request a Repair

The Allen Bradley part number 2090-CPM7E7-16AF03 is a cable explicitly engineered for precision and reliability in motion control applications, especially with Kinetix and MP-Series motors. With a robust length of 3 meters, it is suited for diverse installation environments. This cable is constructed of 16 AWG conductors, encapsulated in a durable thermoplastic orange jacket. The four-wire configuration ensures effective power distribution and braking functionality.

This cable's design caters to applications that demand continual flexing, thus providing a long life under repetitive motion conditions. It has a minimum bend radius of 117 mm, enabling flexible routing and ease of installation even in tight spaces. The weight of the cable is 0.87 kg, making it manageable for integration into various systems.

Additionally, this cable includes a SpeedTec DIN connector on the motor end, facilitating a secure connection, while its drive end is equipped with an extension receptacle that supports SpeedTec readiness. This feature enhances connection reliability and efficiency when interfacing with drive systems. Rated for a maximum voltage of 600 V, this cable meets rigorous industrial standards, ensuring both safety and performance in operational environments.
