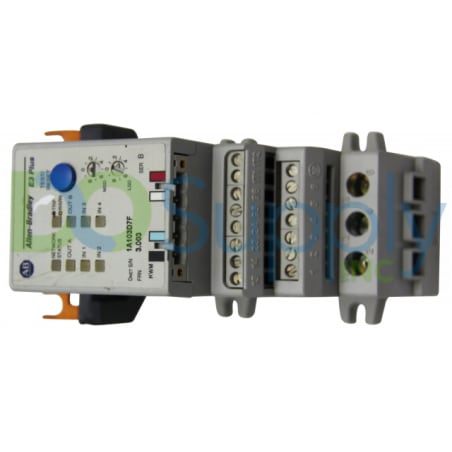

592-EC2CC
The 592-EC2CC is an electronic overload relay from Allen-Bradley’s E3 Plus series. This is a protective electrical device that comes with an internal ground fault sensor, current trip adjustment rating of 5-25 Amperes, NEMA operating voltage of 600 V, and IEC operating voltage of 690 / 1000 V. It has a microprocessor type overload sensing capability with an adjustable trip class of 5-30. This overload relay is also capable of detecting Overcurrent (Jam) Detection, stall detection, underload detection, and current imbalance. It comes with a manual/automatic reset.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 592-EC2CC
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | E3 Plus Solid State Relay |
| Product Line | 592 Overload Relays |
| Part Number | 592-EC2CC |
| UPC | 611320257304 |
| Weight | 2.00 lbs (0.91 kg) |
| Product Family | Electronic Overload Relay |
| Description | E3 Plus Overload Relay |
| Product Category | E3 Plus with internal ground fault |
| Nominal Voltage Rating | 690 Volts AC |
| Adjustable Current Range | 5 to 25 Amps |
| Rated Insulation Voltage | 690V AC |
| Current Adjustment range | 5-25 Amperes |
| Overload Type | Microprocessor |
| Rated Frequency | 20-250 Hz |
| NEMA Operating Voltage | 600 V |
| Trip Class | 5 to 30 |
| No. of Poles | Three (3) |
| IEC Operating voltage | 600 V / 1000 V |
| DeviceNet Connectivity | Yes |
| Operation | 1-Phase / 3-Phase |
| DeviceLogix Integration | Yes |
| Communication | DeviceNet |
| Reset type | Automatic and Manual reset |
| Number Inputs | 4 Sourcing Inputs |
| I/O channels | Two (2) Form A Singe Pole Singe Throw (SPST) Normally Open (N.O.) contact outputs; Four (4) 24 VDC current sinking inputs; Two (2) Thermistor / PTC input terminals |
| Adjustment range | 5:01 |
| Number of Output | 2 Normally Open (NO) |
| Protection features | Overload; Phase loss (trip only); Stall (trip only); Jam; Underload; Current imbalance detections; Number of starts (warning only); Operating hours (warning only); Ground fault |
| Phase loss | Adjustable delay |
| Ground Fault Protection | RMS Sensing |
| Operating temperature | Open: –20degrees …+55degrees C (–4degrees …+131degrees F) Enclosed: –20degrees …+40degrees C (–4degrees …+104degrees F) |
| Overcurrent (Jam) Detection | Supported |
| Cooling method | Natural convection |
| Stall detection | Supported |
| Protection rating | IP20 |
| Underload detection | Supported |
| Current imbalance | Supported |
| Discrete Inputs | Four (4) |
| Discrete outputs | Two (2) |
| PTC Thermistor monitoring | Supported |
The 592-EC2CC is an electronic overload relay that is manufactured by Allen-Bradley. This electrical device has a microprocessor-based overload detection capability that is part of the E3 plus sub-category which comes with an integrated ground fault sensor. The 592-EC2CC has an adjustable current trip range of 5-25 Amperes with a NEMA nominal operating voltage of 600 V and IEC nominal operating voltage of 600 V / 1000 V. The 592-EC2CC comes with an automatic and manual reset capability. Aside from the internal ground fault sensor, this electronic overload relay is also capable of detecting Overcurrent (Jam) Detection, stall detection, underload detection, current imbalance, and adjustable phase loss detection. This protective device is also provided with a Normally Closed (N.C.) Trip contact can be used to energize external indicating devices. The 592-EC2CC is also provided with Four (4) Discrete inputs rated 24 VDC, Two (2) outputs, and One (1) Positive Temperature coefficient (PTC) Thermistor input. In addition, this device features a thermal memory circuit intended to provide an approximation of thermal decay, applicable in trip class 30 configuration. The device’s time to trip estimation is accessible via the DeviceNet network. The 592-EC2CC comes with an integrated DeviceLogix communication capability, accessible using the RSNetWorx for DeviceNet Version 3.0 or higher version. Supported function blocks of this device include typical Boolean instructions such as AND, OR, Exclusive OR (XOR), and Invert (NOT). Timers, counters, and latch instructions are also supported by the overload relay.
- 592EC2CC
Does the 592-EC2CC come with a warranty?
Yes, the 592-EC2CC includes a free 2-year DO Supply warranty. You can upgrade to a 3-year warranty at checkout for even more protection.
What are the fault detection capabilities of the 592-EC2CC?
The 592-EC2CC is capable of detecting and counting Overload, Phase loss (trip only), Stall (trip only), Jam, Underload, Current imbalance detections; Number of starts (warning only), Operating hours (warning only) and Ground fault.
What are the I/O channels available to this overload relay?
The 592-EC2CC has Two (2) Form A Singe Pole Singe Throw (SPST) Normally Open (N.O.) contact outputs rated 240 VAC; Four (4) 24 VDC current sinking inputs with On-state voltage of 15 VDC and Two (2) Thermistor / PTC input terminals which supports up to Six (6) sensors.
What is the built-in communication capability of the 592-EC2CC?
The 592-EC2CC supports DeviceNet communication.
What is the adjustable trip setting of the 592-EC2CC?
The 592-EC2CC has an adjustable trip setting 5-25 Amperes.
Does the 592-EC2CC come with an internal ground fault?
Yes. The 592-EC2CC features an internal ground fault protection.
Does the 592-EC2CC support DeviceLogix protocol?
Yes. With DeviceLogix capability, this relay can be downloaded with simple routines and implement logic with basic, standard instructions.
The 592-EC2CC is an Allen-Bradley E3 Plus multi-function Solid-State microprocessor installed overload relay. This electrical component is designed for use with Squirrel-cage induction motors. This relay is rated has an operating voltage of 690 VAC (IEC) and 600 VAC (UL) with rated operating frequency of 20-250 Hz. It has Three (3) poles and support Single-phase or Three (3) phase operation. This relay supports DeviceNet communication, Two (2) Form A contact outputs; Four (4) 24 VDC current sinking inputs and Two (2) Thermistor / PTC input terminals.
