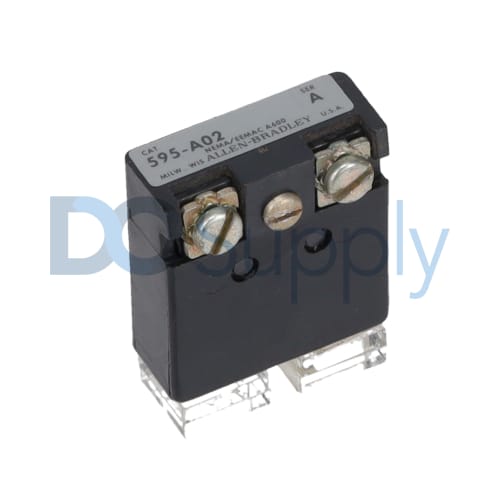

Allen Bradley 595 Series 595-A02

Product image is representative; revision or series may vary. Contact us to request a specific version.

595-A02

|
Need a Specific Revision?

The 595-A02 from Allen Bradley is a specialised auxiliary contact primarily designed for use with eutectic alloy-type overload relays. It is capable of handling a current rating of up to 10.0 A and features a normally open (N.O) contact configuration.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 595-A02

ManufacturerAllen Bradley
Product TypeAuxiliary Contact
Product Line595 Series
Part Number595-A02
Weight0.06 lbs (0.03 kg)
UPC781180156434
Current Rating10.0 A
Contact Configuration1 N.O
NEMA Size CompatibilitySize 5
Primary ApplicationEutectic Alloy-Type Overload Relays
Minimum Operating Temperature-20 °C
Maximum Operating Temperature40 °C
Minimum Storage Temperature-40 °C
Maximum Storage Temperature80 °C
Minimum Relative Humidity5% (Non-Condensing)
Maximum Relative Humidity95% (Non-Condensing)
Request a Repair

The Allen Bradley part number 595-A02 stands as a pivotal component within the 595 Series, tailored as an auxiliary contact. It is primarily utilised alongside eutectic alloy-type overload relays, providing essential functionality for motor control systems and other industrial applications. With the ability to support a current rating of 10.0 A, this contact is engineered for reliable operation.

This unit features a single normally open (N.O) contact configuration that allows for effective integration into various control circuits. Designed for compatibility with NEMA Size 5 standards, the 595-A02 meets specific requirements in industrial environments. Regarding temperature performance, it can operate within a range of -20 °C to 40 °C. Meanwhile, it conforms to stricter storage conditions, tolerating temperatures from -40 °C during storage, extending up to a maximum of 80 °C.

Notably, the 595-A02 is resilient under specific humidity conditions, functioning optimally between 5% and 95% relative humidity without condensation, which is crucial for maintaining consistent performance in fluctuating environmental conditions. Overall, this auxiliary contact is built to withstand the demands of industrial operation, ensuring safe and effective functionality.
