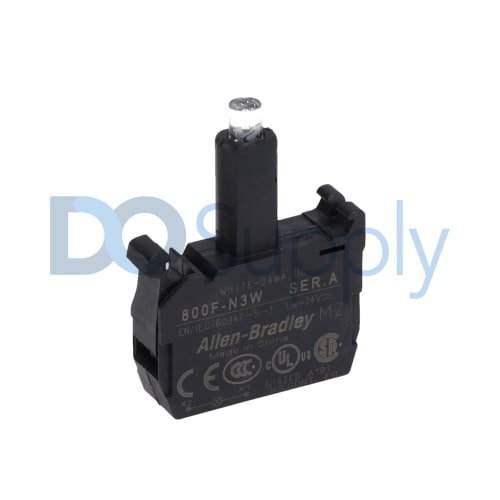

Allen Bradley 800F Push Buttons 800F-N3W

Product image is representative; revision or series may vary. Contact us to request a specific version.

800F-N3W

|
Need a Specific Revision?

The 800F-N3W is a module featuring LED technology within the Allen Bradley Bulletin 800F series. This unit operates on an input voltage of 24 Volts AC/DC, illuminating with a white lamp.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 800F-N3W

ManufacturerAllen Bradley
Product TypeLED Module
Product Line800F Push Buttons
Part Number800F-N3W
UPC662468119931
Weight2.00 lbs (0.91 kg)
Input Voltage (Illumination Module)24 Volts AC/DC
Illumination LampWhite
Contact Block Mounting OptionLatch
Wire Size (Illumination Module)18 to 12 AWG
Mounting Hole Dimensions22.5 millimeters
Maximum Relative Humidity95% at 25 to 60 degrees Celsius
CertificationsUL, UR, CE, CSA, CCC
Shock Rating100 G
Vibration Rating10 G
Request a Repair

The Allen Bradley 800F-N3W serves as an LED module in the Bulletin 800F product line. Designed to function with a voltage input of 24 Volts AC/DC, it provides illumination using a white lamp. This module integrates seamlessly into various industrial applications where visual indicators are essential.

It is compatible with latch mounting for the contact block, ensuring stability during use. Wire connections require sizes ranging from 18 to 12 AWG, making it versatile for different installation needs.

Users will appreciate the straightforward mounting design, which features a hole size of 22.5 millimeters. The device is rated to operate effectively in high humidity conditions, tolerating up to 95% relative humidity at temperatures between 25 to 60 degrees Celsius.

The 800F-N3W is certified by several reputable organizations, including UL, UR, CE, CSA, and CCC, affirming its conformity to relevant safety and performance standards. With a shock rating of 100 G and a vibration tolerance of 10 G, this module is built to withstand the rigors of its operating environment, making it reliable for industrial applications.
