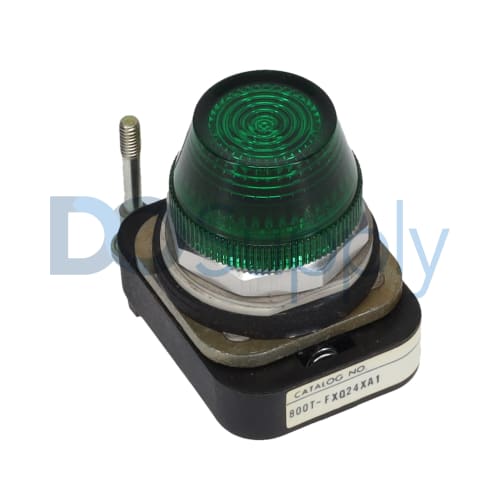

Allen Bradley 800T Push Buttons 800T-FXQ24A1

Product image is representative; revision or series may vary. Contact us to request a specific version.

800T-FXQ24A1

|
Need a Specific Revision?

The 800T-FXQ24A1 model from Allen Bradley refers to a durable push pull button designed for versatile applications. With a rated voltage of 24 V and compatibility with both AC and DC voltage types, it integrates easily into various systems.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 800T-FXQ24A1

ManufacturerAllen Bradley
Product TypePush Pull Button
Product Line800T Push Buttons
Part Number800T-FXQ24A1
Weight0.31 lbs (0.14 kg)
Rated Voltage24 V
Voltage TypeAC/DC
Hole Diameter30 mm
Head TypeMushroom Head
Twice Release OptionNot Available
Button TypeFull Voltage
IlluminationIncandescent
Housing MaterialMetal
NEMA Type13-Apr
Contact Blocks1NC/1NO
Dielectric strength1300V for 1 minute
Life Cycle250,000 cycles
Request a Repair

The Allen Bradley 800T-FXQ24A1 is a robust push pull button engineered for reliability in industrial environments. Capable of handling voltage ratings up to 24 V, this unit is compatible with both AC and DC voltage types. Its hole diameter measures 30 mm, making it suitable for standard installations. The design includes a mushroom head that enhances user interaction by providing a larger surface for operation.

This push button does not offer a twice release feature and is classified as a full voltage button. The illumination is provided by incandescent light, effectively signaling the button's status. Constructed with a metal housing, the 800T-FXQ24A1 is designed to withstand challenging conditions, aligning with NEMA Type 13-Apr standards for dust and water resistance.

For operational functionality, this model features a contact block configuration comprising one normally closed and one normally open contact (1NC/1NO). The dielectric strength is rated at 1300 volts for one minute, ensuring safety during operation. This push pull button is rated for an impressive life cycle of 250,000 cycles, demonstrating its longevity and dependability in demanding applications.
