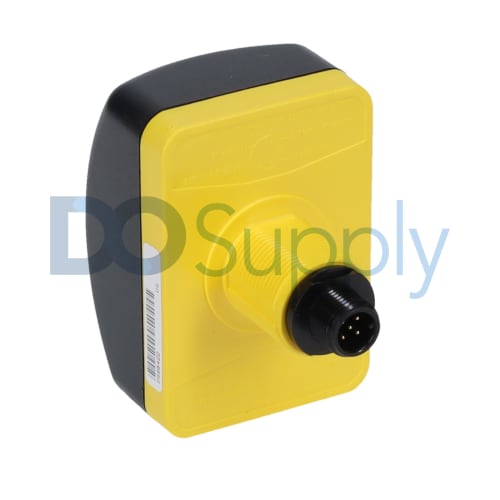

800Z-GL2Q5

The Allen-Bradley 800Z-GL2Q5 Zero Force Touch Button is a high-sensitivity touch button from the Allen-Bradley bulletin 800Z Zero Force Touch Buttons product series. The 800Z-GL2Q5 Zero Force Touch Button offers an innovative design that helps reduce concerns about ergonomics and safety, unlike the traditional touch buttons, the Allen Bradley Bulletin 800Z touch buttons incorporate microprocessor operation and field-effect sensing technologies that meet global standards such as CE, cULus. The 800Z-GL2Q5 Zero Force Touch Button field-effect sensing registers an operator touch and then converts this touch into an electrical output that initiates operation. The Bulletin 800Z touch buttons are available in either the 22.5-millimeter general-purpose configuration (the 800Z-GL2Q5 Zero Force Touch Button inclusive) or the 30.5-millimeter heavy industrial configuration.

The 800Z-GL2Q5 Zero Force Touch Button features an ergonomically crafted design that is suitable for modern-day repetitive motion applications, and it is specially built to fit the shape of operator’s hands to reduce the effect of carpal tunnel syndrome and other nerve disorders that may result from repetitive operator interface operation. The 800Z-GL2Q5 Zero Force Touch Button also features unique field sensing technology that helps distinguish between a human touch and any foreign objects in the environment. The 800Z-GL2Q5 Zero Force Touch Button features a 5-pin mini-QD quick disconnect connection for simplified wiring, and a self-diagnostic circuit with an LED indicator for a safer and more reliable solution. The 800Z-GL2Q5 Zero Force Touch Button has a relay (5-pin mini-QD) output that belongs to the low-voltage 10 to 50 Volts DC and 20 to 40 Volts AC category. Its 5-pin QD output has a maximum cable length of 10 meters and a standard wire size of 0.5 millimeters square (22 AWG). The 800Z-GL2Q5 Zero Force Touch Button has a NEMA Type 4/4X/13 ingress protection, and it has a housing made from Valox 357 material.
