1492-SPM1C010

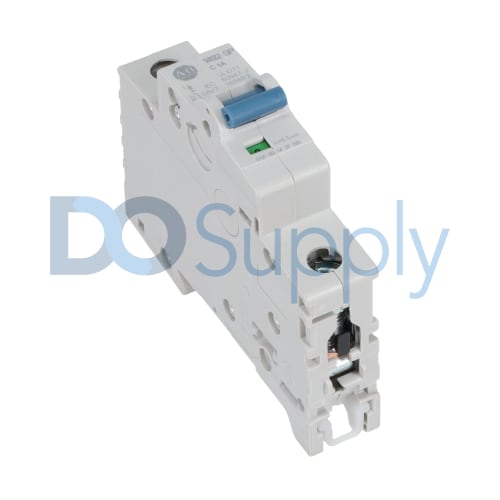

The Allen Bradley 1492-SPM1C010 serves as a crucial supplementary protector, engineered to enhance safety in electrical circuits. It is versatile, operating effectively at rated frequencies of 50 to 60 Hertz. The continuous current rating is pegged at 1 Ampere, and it can handle voltages of 48 Volts DC and 277 Volts AC, allowing it to adapt to various applications.

The trip mechanism is based on a thermal-magnetic unit, providing both overload and short-circuit protection. With an instantaneous breaking time, this protector responds rapidly to electrical faults, emphasizing reliability. It is rated to manage short-circuit breaking capacities of up to 10 kiloamperes, safeguarding connected systems from excessive current.

The mechanical endurance of this model can support up to 20,000 operations, demonstrating durability over time. For connectivity, it incorporates clamp terminals that simplify installation on a DIN rail mount, ensuring secure and efficient organization in control panels. Furthermore, its rated impulse withstand voltage of 4 kilovolts and dielectric test voltage of 2 kilovolts confirm its effective performance under high-stress conditions. The housing insulation complies with Insulation Class II standards, providing an additional layer of safety in various operating environments.
