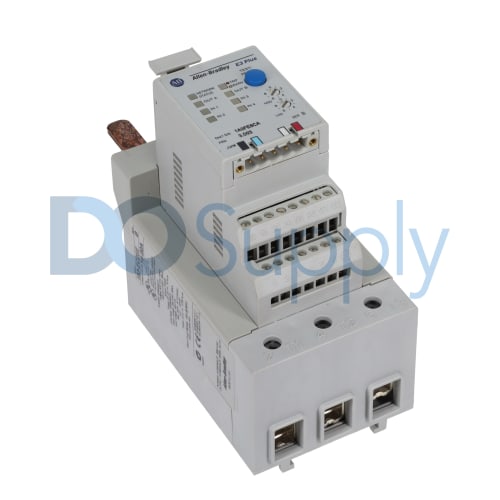

Allen Bradley E1 Plus Relays 193-EC2EE

Product image is representative; revision or series may vary. Contact us to request a specific version.

193-EC2EE

|
Need a Specific Revision?

The 193-EC2EE from Allen Bradley is an overload relay tailored for precise motor protection. This device supports full load currents ranging from 18 to 90 Amperes and integrates an internal ground fault sensor for enhanced safety.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 193-EC2EE

ManufacturerAllen Bradley
Product TypeOverload Relay
Product LineE1 Plus Relays
Part Number193-EC2EE
UPC611320404487
Weight2.06 lbs (0.94 kg)
Internal Ground Fault SensorIntegrated
Contactor MountingDirect contactor mount
Trip Classes Available10, 20, 30 Classes
Phase Monitoring3-phase protection
Adjustment Range Ratio5:1
Reset TypesAutomatic and manual
Thermistor MonitoringPTC thermistor input supported
Ground Fault ProtectionLow-level sensitive ground fault
Phase Loss Delay AdjustmentAdjustable
Trip Class Adjustment5–30
Number of Outputs2 Outputs
Number of Inputs4 Inputs
Full Load Current18–90 A
Request a Repair

The model 193-EC2EE overload relay, manufactured by Allen Bradley, is specifically designed to safeguard motors against overload conditions. It operates effectively with a full load current rated between 18 and 90 A. The integrated ground fault sensor adds a layer of protection by detecting low-level ground faults, ensuring operational safety.

This relay supports 3-phase monitoring, which is crucial for maintaining balance in motor operations. It has multiple trip classes available, specifically classes 10, 20, and 30, allowing for tailored protection based on specific application demands. The trip class can be adjusted within a range of 5 to 30, which provides flexibility in setting the relay based on motor characteristics.

Users can select either automatic or manual reset types, providing options based on their operational requirements. Additionally, the 193-EC2EE overload relay supports PTC thermistor monitoring by accommodating thermistor inputs. This feature ensures that temperature variations are effectively monitored, contributing to the overall reliability of the motor system.

The relay includes phase loss delay adjustments to fine-tune responses to temporary phase losses, aiding in the prevention of nuisance trips. Connectivity options are robust, featuring four inputs and two outputs for operational versatility. The overload relay mounts directly onto contactors, facilitating straightforward installation and integration into existing systems.
