Warranty: | 1 year DO Supply Warranty Included |
Shipping: | Worldwide shipping via DHL, UPS, Fedex, and TNT |
Repairs: | We offer repair service for the MPF-B330P-SJ72BA. |
Exchange: | Exchange credit for your defective unit available. |
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | MPF-B330P-SJ72BA |
Voltage | 460 V |
Rotations Per Minute | 5000 |
Encoder | Multi-Turn |
Frame Size | 3.94 in (100 mm) |
Stack Length | 3.0 in (76.2 mm) |
Mounting Holes | Type FF |
Brake | No |
Shaft Extension | Keyed |
IEC Metric | Oversized |
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | MPF-B330P-SJ72BA |
Voltage | 460 V |
Rotations Per Minute | 5000 |
Encoder | Multi-Turn |
Frame Size | 3.94 in (100 mm) |
Stack Length | 3.0 in (76.2 mm) |
Mounting Holes | Type FF |
Brake | No |
Shaft Extension | Keyed |
IEC Metric | Oversized |

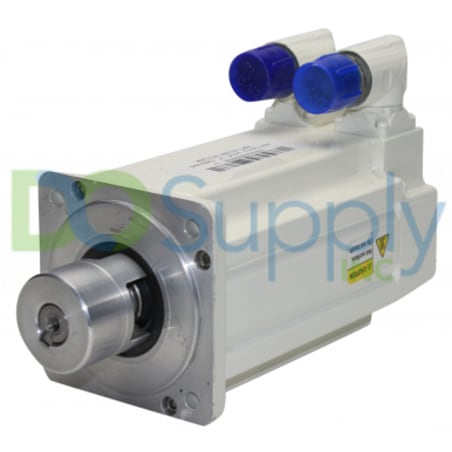

The MPF-B330P-SJ72BA is a food-grade servo motor belonging to the MP-series of motors from Allen-Bradley. The MP-Series™ Food Grade (MPF) motors combine high-efficiency and high-torque capability with features specifically designed to meet the unique needs of food and beverage applications.
The use of improved sealing techniques and non-corrosive food grade fasteners and coatings address the challenges associated with food preparation environments. Food grade grease and durable food grade epoxy paint are also used. The shaft and all fasteners are stainless steel, reducing the corrosion caused by exposure to cleaning solutions and food by-products.
The motors are intended to be used with the Allen-Bradley Kinetix® 6000 (230 or 460 volt) and Ultra™3000 (230 or 460 volt) drives. The MPF-B330P-SJ72BA servo motor is in the 460 V voltage class with a frame size of 110 mm and magnet stack length of 76.2 mm (3.0 in.). It is rated at 5000 RPM at 1.6 kW. It supports 1024 sin/cos and an absolute single-turn encoder (Hiperface protocol) which provides high-resolution absolute position feedback within just 1 turn. It also includes an IP66/IP67 housing/keyed shaft and a circular (SpeedTec) DIN connector (right angle, 180° rotatable). A 24V DC brake is available as an option for stopping the machine.
The MPF-B330P-SJ72BA’s motor inertia is rated at 0.00012 kg-m2 (0.0010 lb-in.-s2). The continuous stall torque is 4.18 Nm (37 lb-in), the peak stall torque is 11.1 Nm (98 lb-in), the continuous stall current (0-peak) is 5.7A, and the peak stall current (0-peak) is 19A.
The MPF-B330P-SJ72BA’s ambient operating temperature range is 0-40 oC (32-104 oF) and it weighs 4.7 kg.
Type | Lead Time | Price | Action |
---|---|---|---|
Repair Service | 2-4 weeks | Ask | ![]() |
Our highly skilled technicians can repair your MPF-B330P-SJ72BA. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.
Please refer to the manual for more information about the MPF-B330P-SJ72BA such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.
Revision Part # | Also Known as | Availability |
MPF-B330P-SJ72BA Ser A |
MPF-B330P-SJ72BA/A, Series A, Rev A | Request Quote |
Size | |
Input Type | |
Panel Cutout Height | in mm |
Panel Cutout Width | in mm |
Terminal Height | in mm |
Terminal Width | in mm |
Terminal Overall Depth | in mm |
Terminal Mounted Depth | in mm |
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | MPF-B330P-SJ72BA |
Voltage | 460 V |
Rotations Per Minute | 5000 |
Encoder | Multi-Turn |
Frame Size | 3.94 in (100 mm) |
Stack Length | 3.0 in (76.2 mm) |
Mounting Holes | Type FF |
Brake | No |
Shaft Extension | Keyed |
IEC Metric | Oversized |
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | MPF-B330P-SJ72BA |
Voltage | 460 V |
Rotations Per Minute | 5000 |
Encoder | Multi-Turn |
Frame Size | 3.94 in (100 mm) |
Stack Length | 3.0 in (76.2 mm) |
Mounting Holes | Type FF |
Brake | No |
Shaft Extension | Keyed |
IEC Metric | Oversized |
The MPF-B330P-SJ72BA is a food-grade servo motor belonging to the MP-series of motors from Allen-Bradley. The MP-Series™ Food Grade (MPF) motors combine high-efficiency and high-torque capability with features specifically designed to meet the unique needs of food and beverage applications.
The use of improved sealing techniques and non-corrosive food grade fasteners and coatings address the challenges associated with food preparation environments. Food grade grease and durable food grade epoxy paint are also used. The shaft and all fasteners are stainless steel, reducing the corrosion caused by exposure to cleaning solutions and food by-products.
The motors are intended to be used with the Allen-Bradley Kinetix® 6000 (230 or 460 volt) and Ultra™3000 (230 or 460 volt) drives. The MPF-B330P-SJ72BA servo motor is in the 460 V voltage class with a frame size of 110 mm and magnet stack length of 76.2 mm (3.0 in.). It is rated at 5000 RPM at 1.6 kW. It supports 1024 sin/cos and an absolute single-turn encoder (Hiperface protocol) which provides high-resolution absolute position feedback within just 1 turn. It also includes an IP66/IP67 housing/keyed shaft and a circular (SpeedTec) DIN connector (right angle, 180° rotatable). A 24V DC brake is available as an option for stopping the machine.
The MPF-B330P-SJ72BA’s motor inertia is rated at 0.00012 kg-m2 (0.0010 lb-in.-s2). The continuous stall torque is 4.18 Nm (37 lb-in), the peak stall torque is 11.1 Nm (98 lb-in), the continuous stall current (0-peak) is 5.7A, and the peak stall current (0-peak) is 19A.
The MPF-B330P-SJ72BA’s ambient operating temperature range is 0-40 oC (32-104 oF) and it weighs 4.7 kg.
Type | Lead Time | Price | Action |
---|---|---|---|
Repair Service | 2-4 weeks | Ask | ![]() |
Our highly skilled technicians can repair your MPF-B330P-SJ72BA. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.
Type | Lead Time | Price | Action |
---|---|---|---|
Repair Service | 2-4 weeks | Ask | ![]() |
Our highly skilled technicians can repair your MPF-B330P-SJ72BA. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.
Please refer to the manual for more information about the MPF-B330P-SJ72BA such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.
Revision Part # | Also Known as | Availability |
MPF-B330P-SJ72BA Ser A |
MPF-B330P-SJ72BA/A, Series A, Rev A | Request Quote |
