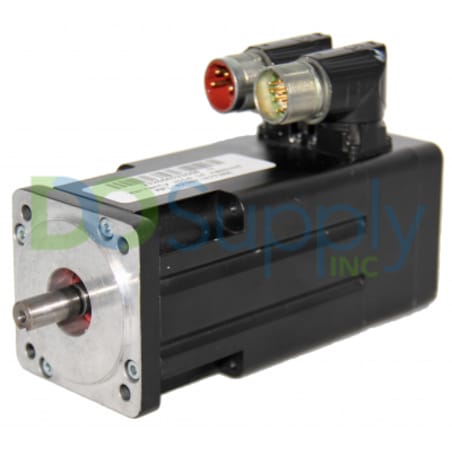

MPL-A230P-HJ72AA

The Allen-Bradley MPL-A230P-HJ72AA brushless servo motor is a premium magnet rotary servo motor in the MP series of brushless servo motors with small frame sizes that are built to meet the tough needs of a high-performance motion system. This motor series is built around small size blueprint while delivering high torque, and they incorporate the innovative Allen-Bradley winding technology, which yields an additional 40% torque increase compared to conventional servo motors. The MPL-A230P-HJ72AA servo motor has a nominal voltage rating of 230 Volts AC, and an output power rating of 0.86 kilowatts. This motor has a base motor speed of 5,000 rpm, and it can deliver a peak torque rating of 19 pounds on an inch at 23.0 Amps of peak stall current. For enhanced thermal management and heat transfer, all MP series low-inertia servo motors incorporate the improved winding insulation material which helps to reduce downtime.

The MPL-A230P-HJ72AA servo motor comes with a high-performance 2000-line encoder option which provides smooth and accurate control, and it is compatible with the Allen-Bradley Kinetix 5500, 6200, 6500, 6000, 300, 2000, 7000, and Ultra3000 families of servo drives. It features high-energy rare-earth magnets that are protected by an IP 50 standard enclosure, and a shaft-end threaded hole with a shaft key option. The MPL-A230P-HJ72AA servo motor has a 180-degree rotatable DIN connector option with 75-millimeter IEC 72-1 mounting dimensions, and a 2-inch magnet stack length for higher performance. It has a working temperature range of 0 to 40 degrees Celsius, and it must be used in a 5 to 95% non-condensing relative humidity range. The MPL-A230P-HJ72AA servo motor has CE, CSA, and UL certifications, and it weighs approximately 5.7 pounds.
