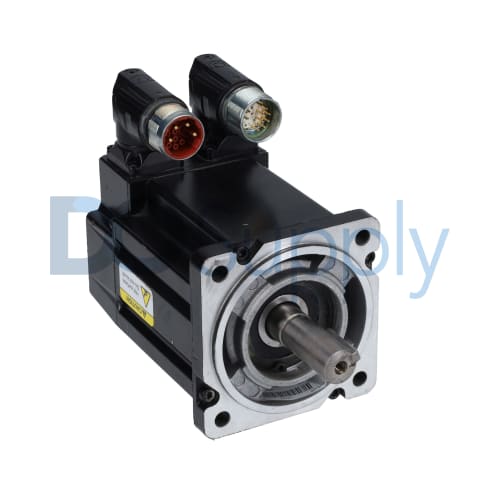

MPL-A310P-MJ72AA

The Allen-Bradley MPL-A310P-MJ72AA is a servo motor from the Kinetix MP series. Servo motors in general, are used as prime mover to initiate rotary or linear motion of an equipment or device. Not only that it allows movement, it provides accurate control of position and motion, allowing an object to maintain its position and remain stopped at a certain area of range of motion. Servo motors, just like the MPL-A310P-MJ72AA uses an encoder to report the current degree of rotation of the servo motor and translates this to actual position or number of motions.

The MPL-A310P-MJ72AA is part of the MP Low-Inertia brushless, synchronous servo motors. This servo motor is ideally used in non-food applications however, covers a wide variety of applications including Packaging, Converting, Material handling, Electronic assembly, and Automotive applications. The MPL-A310P-MJ72AA has a compact assembly and small body however, it is a high output motor capable of providing the required Torque to hold or suspend the position of an object, along the power and Current output. Specifically, this servo motor has 3.61 N-m continuous stall Torque rating, output Current of 4.9 amperes and maximum operating speed of 5000 revolutions per minute (rpm). This servo motor is provided with an encoder that is of 1024 sin/cos absolute multi-turn type and operated by providing a 230VAC external supply voltage. Additionally, this encoder has a Frame size 3, and 25.4 mm or 1-inch length of magnet stack. It uses SpeedTec DIN connectors for making external connections, which simplifies connection method.

The MPL-A310P-MJ72AA servo motor has a magnetic stack length of 25.4 millimeters. The motor is supplied fitted with a 1024 sin/cos, absolute multi-turn feedback encoder. The motor interfaces with the power supply and the controller by using circular SpeedTec DIN connectors. The connectors are placed at right angles in reference to the motor’s frame and they are rotatable. The Allen-Bradley MPL-A310P-MJ72AA servo motor belongs to the MP series of motors with low inertia. Motors in this series can be used in food packaging, volumetric filling, food handling, consumer products, life science, processing, raw food handling, and other industrial applications. Additionally, the MPL-A310P-MJ72AA servo motor, as with other motors in the same series, makes use of flex cables and also of standard cables.
