MPL-A310P-MK22AA

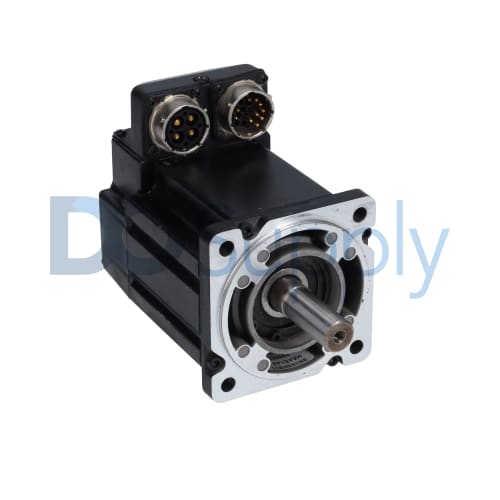

The MPL-A310P-MK22AA servo motor is a premium permanent magnet rotary servo motor manufactured by Allen-Bradley. It is a low-inertia type of servo motor and it is rated at 5000 revolutions per minute, 200 Volts AC power, 730 Watts, 4.9 Amps of stall current, and 1.58 Nm of stall torque. This motor has a multi-turn high-resolution encoder that provides feedback for the shaft's total number of rotations, the position within a revolution, and the degree of rotation. The MPL-A310P-MK22AA servo motor features high-energy magnets with a 1-inch magnetic stack length for faster acceleration. This motor’s coils are wound in a way that allows it to provide better torque compared to standard motors of similar size.

The IEC mounting flange of the MPL-A310P-MK22AA servo motor is easily aligned to machines when installing the motor by using the mounting pilot that comes with it. This motor features a 100-millimeter frame and its circular bayonet connectors provide a simple and secure way to connect its accessories and controllers. At the startup, the MPL-A310P-MK22AA servo motor’s integral memory automatically sends its identity to its assigned drive so that the operator does not have to manually enter the motor’s ID. The MPL-A310P-MK22AA low-inertia servo motor can be used in applications where it has to be mechanically connected to the motion system with a coupling or a pulley. When it is used in such applications, the belt or coupling must be inspected periodically to avoid any instability or damage to the motor’s shaft. Note that the MPL-A310P-MK22AA servo motor does not come with a shaft seal or a shaft key, and it has no brake mechanism onboard.
