MPL-A320H-SJ22AA

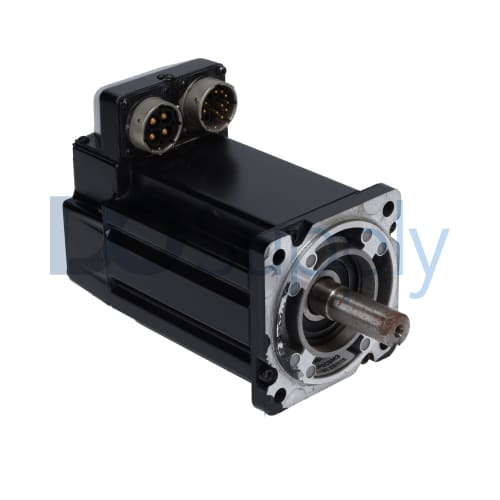

The MPL-A320H-SJ22AA servo motor is a premium permanent magnet series low-inertia brushless servo motor manufactured by Allen-Bradley to meet the requirements of the most demanding industrial motion systems. Its frame size is 100 millimeters and it has a power rating of 1 kilowatt. The voltage rating of this motor is 230 Volts AC, and its speed ratings are 3500 revolutions per minute, 0.000078 kilograms-meter2 rotor inertia, and 3.05 N-m of continuous stall torque. The MPL-A320H-SJ22AA brushless servo motor has 6.1 Amps of continuous stall current and it uses a single-turn high-resolution encoder to process speed feedback.

The Allen-Bradley MPL-A320H-SJ22AA servo motor features a shaft key and it can be connected to machines by using couplings or torsionally rigid timing belts with the correct ratings. It features stationary circular bayonet connectors and it has a 3-inch magnetic stack length. Its compact design and improved winding technology make it the ideal motor for meeting the requirements of applications that require higher torque performance, quicker acceleration, and a small motor size. Because this servo motor’s identity is saved to its smart memory, it automatically reports its identity whenever it is connected to a new drive, thereby reducing commissioning time. Note that the MPL-A320H-SJ22AA servo motor does not feature a shaft seal kit. Therefore, the users must install an Allen-Bradley MPL-SSN-A3B3 seal kit on the motor before it can meet the IP 66 environmental protection rating required for industrial applications where the servo motor may have direct contact with liquids or dust. The mounting pilot of this motor simplifies the mounting process by helping the users to achieve proper motor alignment and the ambient operating temperature range of this motor is from 0 to 40 degrees Celsius.
