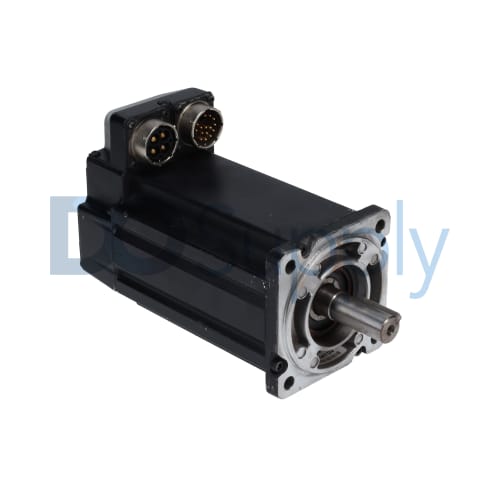

MPL-A330P-HJ22AA
This AB low inertia servo comes with a speed rating of 5000 revolutions per minute. Furthermore, this VAC drive also is equipped with circular bayonet forward facing connectors which are pre-installed on this low rotor motor. This compact brushless servo motor is a 460 volt voltage class unit. In addition, this compact brushless servo motor comes w/o 24 DC brake included on the servo and comes with a hall 2000 Line feedback built in. Additionally, this brushless servo motor is a 100 millimeter frame servo.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for MPL-A330P-HJ22AA
| Manufacturer | Allen Bradley |
|---|---|
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-A330P-HJ22AA |
| Weight | 11.69 lbs (5.30 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 200V AC |
| Frame Size | 100 mm |
| Magnetic Stack Length | 3 in. |
| Rated Speed | 5000 rpm |
| Feedback | 2000 line encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular bayonet, facing shaft |
| Brake | No brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
The Allen-Bradley MPL-A330P-HJ22AA servo motor is a servo motor with a circular bayonet connector that can be applied to packaging, robotics, and automotive applications. It is currently distributed by Allen-Bradley/Rockwell Automation. This servo motor saves space while providing high torque capabilities. This servo motor is a low-inertia dynamic brushless servo motor. It comes with a mechanism that develops its position detection and improves its overall performance. The MPL-A330P-HJ22AA servo motor with a circular bayonet connector can operate with a voltage of up to 200 Volts AC and it also can reach a speed of 3000 rpm and a motor rated output of 1.8 kilowatts.
The frame size of the Allen-Bradley/Rockwell Automation MPL-A330P-HJ22AA servo motor with a circular bayonet connector goes around the 100 millimeters and it has an overall weight of 4.6 kilograms. The magnet stack in this servo motor has an approximate length of 76.2 millimeters. The MPL-A330P-HJ22AA servo motor comes with an incremental feedback encoder whose main function is to register up to 2000 lines of feedback data in order to determine the best operating position for the servo motor. This technology does not apply to all the servo motors from this series. When mounting the servo motor and before starting operations, it needs to be properly mounted and aligned and all of its connections must be attached properly. Voltage and frequency inputs must be measured and so should the other input and outputs in order to check that everything is in place before the startup.
| Revision Part # | Also known as | |
|---|---|---|
| MPL-A330P-HJ22AA Ser A | MPL-A330P-HJ22AA/A, Series A, Rev A | |
| Don't see your particular revision? Contact us now. | ||
- MPL-A33OP-HJ22AA
- MPLA330PHJ22AA
- MPLA33OPHJ22AA
This Premium permanent magnet rotary servo motor (Low inertia) includes a 200V, 100 mm frame size, with a magnetic stack length of 3 in., a rated speed of 5000 rpm, a 2000 line encoder feedback, Shaft key/no shaft seal, Circular bayonet, facing shaft, No brake, IEC metric, and Standard designated options.
