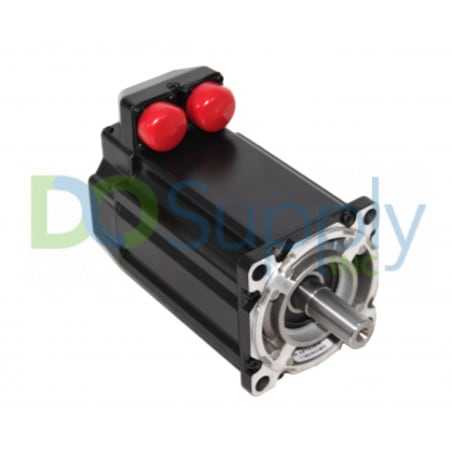

MPL-A430H-HK22AA

The Allen-Bradley MPL-A430H-HK22AA motor is a low-inertia premium permanent magnet rotary servo motor that features a 115 millimeters frame size. The MPL-A430H-HK22AA drive comes with a voltage rating of 200 Volts. This servo motor has a rated speed of up to 3500 revolutions per minute with a magnet stack length of 76.2 millimeters, which is also equivalent to 3 inches. The Allen-Bradley servo motors feature the SpeedTec-ready DIN connectors. The SpeedTec DIN connector versions of the MPL-A430H-HK22AA servo motor allows for flexible orientation of the motor connectors. It uses the single-cable setup that is common to the MP low-inertia servo motor series. These SpeedTec connectors provide a fast 1-quarter turn connection for ensuring an easy and secure servo connection. Featuring smart motor technology, the MPL-A430H-HK22AA servo motor comes with an onboard memory unit that is used to retain the motor identity. The servo motor also comes with the communication link that links automatically and reports the motor identity to the system once the unit is started. This also ensures a reduced commissioning time. The MPL-A430H-HK22AA servo motor features a feedback rating of 2000 lines per revolution and an incremental encoder and it comes with no shaft key and no shaft seal. The MPL-A430H-HK22AA servo motor comes with a circular bayonet-facing shaft and it is a standard option motor with an IEC metric free mounting flange. The Allen-Bradley servo motors feature a complete selection of the power, feedback, as well as brake cables for the MP-series motors. These motors come with the shaft seal kits available for different frame sizes. To increase the life of the MPL-A430H-HK22AA servo motor, it is important that the users ensure that the manufacturer’s installation and maintenance guidelines are adhered to. In addition, the user needs to consider a shield that will help to protect the motor housing, the shaft seal, and the junctions from exposure to foreign matter or fluids that will affect the functioning of the servo motors.

his servo motor belongs to the 200V voltage class motors, It has an output power of 1.8 kW and current of 12.2 Amperes. It may be operated up to a maximum speed of 3500 revolution per minute (rpm) however, the rated speed is 3350 rpm. To monitor and provide feedback to servo motors calculated position or rotations, it is pre-installed with a 2000 lines/revolution, incremental encoder. Additionally, this servo motor has a keyed shaft however, it does not come with a shaft seal.

Optional accessories for the MPL-A430H-HK22AA include a 24VDC holding brake, keyless shaft, as well as the shaft seal. This are not provided as a default to give user the flexibility to choose the appropriate components to include.

When used with an appropriate Kinetix Servo drive controller, the MPL-A430H-HK22AA may be controlled remotely through a Human Machine Interface (HMI) of Supervisory Control and Data Acquisition (SCADA) systems. Compatible Kinetix Servo Drive controllers are Kinetix 5500, Kinetix 5700, Kinetix 6200/6500, Kinetix 6000, Kinetix 300/350, Kinetix 2000, and Kinetix 7000.

The MPL-A430H-HK22AA has an on-board memory used to retain the servo motor’s identity. This is one of the features of this servo motor being a part of the smart motor technology. The provided communication link to the motor allows reporting of motor identity, making it available and accessible over the network for faster commissioning.
