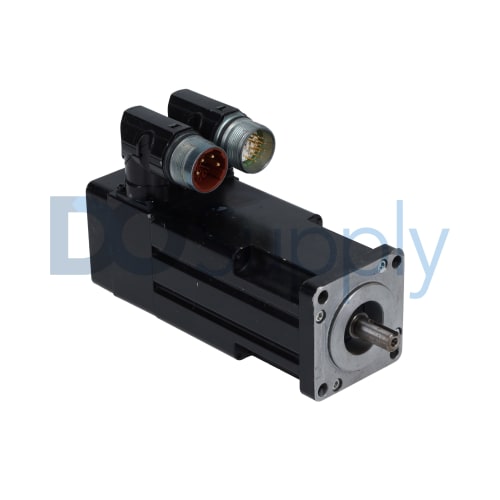

Product image is representative; revision or series may vary. Contact us to request a specific version.
MPL-B1530U-EJ42AA
This AC motor built by AB is a 165 mm frame motor. This MPL AC synchronous servo motor also is a 7000 revolutions per minute AC servo. This servo motor is equipped with a single turn (absolute) encoder. In addition, this low inertia compact brushless servo motor has no braking capability included. It comes with a shaft key, with no shaft seal installed on the servo to allow for connecting to this motor.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for MPL-B1530U-EJ42AA
| Manufacturer | Allen Bradley |
|---|---|
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-B1530U-EJ42AA |
| Weight | 3.38 lbs (1.53 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low inertia |
| Voltage Class | 400V |
| Frame Size | 63 mm |
| Magnetic Stack Length | 3 in. |
| Rated Speed | 7000 rpm |
| Feedback | Single-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | 3 Connectors |
| Brake | No brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
The MPL-B1530U-EJ42AA servo motor is an MPL series servo motor from Allen-Bradley. It uses a premium permanent magnet made up of rare earth metals. It is a low-inertia servo motor from Allen-Bradley/Rockwell Automation. The main purpose of the servo motor is to regulate the angle of rotation of a rotating machine or machine part by using the duration of the pulse. Most servo motors work with Pulse Width Modulation. These motors are widely used in the industrial and commercial sectors. Servo motor devices are also used to control the position of grippers, elevators, and air traffic controlling radar devices. The input voltage of the servo motor is 400 Volts and it uses a magnetic stack length of 30. The MPL-B1530U-EJ42AA servo motor is manufactured with a frame size of 63 millimeters. The body of the servo motor is made up of stainless steel and it has a robust design. The rated speed of the servo motor is 7000 RPM. The servo motor has a shaft key but no shaft seal. The servo motor can be protected by using an additional shaft seal. This add-on shaft seal comes with IP protection. It is water-resistant and it can be used with harsh environmental conditions.
The Allen-Bradley MPL-B1530U-EJ42AA servo motor uses 3 connectors for operation. The servo motor can also be mounted by using the IEC metric flange. The servo motor is manufactured with standard factory designated options. These options are common in all the MPL series servo motors from Allen-Bradley. No braking option is provided in this variant. The MPL-B1530U-EJ42AA servo motor is a brushless AC servo motor and it comes with a continuous stall torque of 0.90 N-m/8 pounds on an inch. This servo motor is a series A device.
| Revision Part # | Also known as | |
|---|---|---|
| MPL-B1530U-EJ42AA Ser A | MPL-B1530U-EJ42AA/A, Series A, Rev A | |
| Don't see your particular revision? Contact us now. | ||
- MPL-81530U-EJ42AA
- MPL-8I53OU-EJA2AA
- MPL-B1530U-EJA2AA
- MPL-B153OU-EJ42AA
- MPL-BI530U-EJ42AA
- MPL81530UEJ42AA
- MPL8I53OUEJA2AA
- MPLB1530UEJ42AA
- MPLB1530UEJA2AA
- MPLB153OUEJ42AA
- MPLBI530UEJ42AA
This Premium permanent magnet rotary servo motor (Low inertia) includes a 400V, 63 mm frame size, with a magnetic stack length of 3 in., a rated speed of 7000 rpm, a Single-turn high-resolution encoder feedback, Shaft key/no shaft seal, 3 Connectors, No brake, IEC metric, and Standard designated options.
