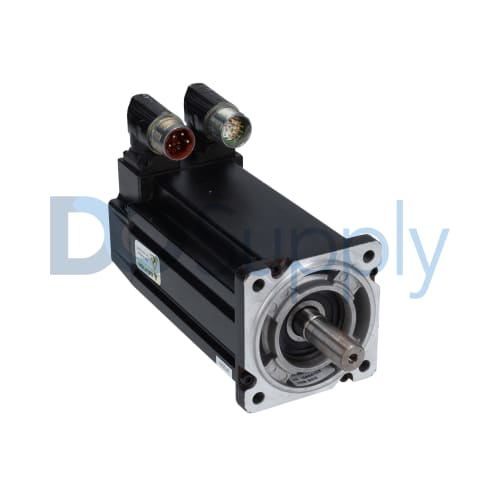

Allen Bradley MPL Servo Motors MPL-B320P-MK74AA

Product image is representative; revision or series may vary. Contact us to request a specific version.

MPL-B320P-MK74AA

|
Need a Specific Revision?

This Allen Bradley/Rockwell Automation 100 millimeter MPL Series brushless servo motor has a rpm rating of 5000 revolutions per minute. It includes a multi-turn encoder feedback and comes with a stack length of 2 inch. This low rotor inertia AC synchronous servo motor in addition has a braking feature built-in if braking is required. Furthermore, this unit also can be connected by right angle DIN servo cable connections which are pre-installed on this top of the line servo motor. Also, it is a 230 AC class unit.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for MPL-B320P-MK74AA

ManufacturerAllen Bradley
CategoryMotors
Product LineMPL Servo Motors
Part NumberMPL-B320P-MK74AA
UPC820919980466
Weight10.00 lbs (4.54 kg)
SeriesPremium permanent magnet rotary servo motor
Series TypeLow-inertia
Voltage Class400 Volts
Frame Size100 millimeters
Magnetic Stack Length2 inches
Rated Speed5000 RPM
FeedbackMulti-turn high-resolution encoder
Shaft Key/SealNo shaft key/no shaft seal
ConnectorsCircular DIN, right angle, 180 degrees rotatable
Brake24 Volts DC brake
Mounting FlangeIEC metric
Factory Designated OptionsStandard
View as PDF
Request a Repair

Manufactured by Allen-Bradley, the MPL-B320P-MK74AA motor is an MPL series low-inertia servo motor. The Allen-Bradley MPL premium permanent magnet rotary servo motors are typically used in applications that include packaging, converting, material handling, electronic assembly, automotive industry, and metal forming applications. The MPL-B320P-MK74AA servo motor is a high-output brushless motor and it features innovative design characteristics. This helps to minimize the size of the servo motor. The MPL-B320P-MK74AA servo motor delivers a significantly high level of torque. The MPL-B320P-MK74AA servo motor is a compact brushless servo motor that has been engineered to ensure that it meets the demanding requirements of high-performance motion systems. Allen-Bradley MPL series of low-inertia motors are commonly used with the Allen-Bradley Kinetix 2000, Kinetix 6000, Kinetix 7000, and the ultra 3000 servo drive series. These drives are also available in 9 frame sizes. The MPL-B320P-MK74AA servo motor is available in the 100-millimeter frame size.

The MPL-B320P-MK74AA servo motor has a power voltage rating of 400 Volts and it features a magnetic stack length of 20 inches and the rated speed for the servo motor is 5000 revolutions per minute. The MPL-B320P-MK74AA servo motor features the multiple turn high-resolution encoders with no shaft key or shaft seal. The servo motor also comes with the 7 circular DIN right angle connectors and the 24 Volts DC brake. The MPL-B320P-MK74AA servo motor requires proper maintenance procedures. By ensuring that the maintenance procedures are followed, the life of the servo motor can be prolonged. As part of the maintenance process, the users should provide shields to help protect the housing of the servo motor. In addition, it is important that the users ensure that the MPL-B320P-MK74AA servo motor is protected from electromagnetic interference.

Revision Part #Also known as
MPL-B320P-MK74AA Ser AMPL-B320P-MK74AA/A, Series A, Rev A
Don't see your particular revision? Contact us now.
