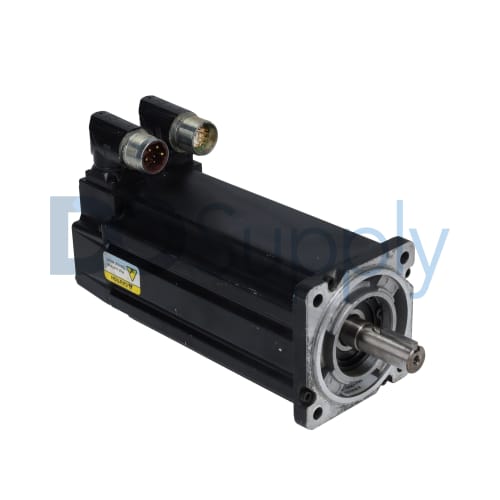

MPL-B330P-MJ74AA

The MPL-B330P-MJ74AA servo motor is used for motion and position control applications whether or rotary or linear type. This servo motor is manufactured by Allen-Bradley that is part of the compact, low inertia output Kinetix MP series servo motors. This servo motor, such as other servo motors, will require a servo drive to allow programmable and local operation. Compatible servo drives for the MPL-B330P-MJ74AA are Kinetix 5500, Kinetix 5700, Kinetix 6200/6500, Kinetix 6000, Kinetix 300/350, Kinetix 2000, and Kinetix 7000.

The MPL-B330P-MJ74AA is ideal for use in most industrial applications with limitation in the food and beverage industry or applications that require food grade requirements. However, the MPL-B330P-MJ74AA application range remains a wide selection of Packaging, Converting, Material handling, Electronic assembly, and Automotive applications as well as similar ones.

This servo motor has rare earth magnets installed within its assembly. This rare earth magnets contribute to faster acceleration time compared to any equivalent servo motor. Additionally, it is part of Allen-Bradley’s smart motor technology wherein the servo motor is equipped with communication link and a local memory for retaining and accessing the motors identification.

This servo motor is operated when wired to a 460VAC supply voltage. With frame size measuring 100 mm, it remains a relatively small servo motor. The magnet stack length of this servo motor is 76.2 mm or 3.0 inihes and designed with a rated and maximum operating speed of 5000 rpm. It has Circular (SpeedTec) DIN connector and uses a 1024 sin/cos, absolute multi-turn encoder (Hiperface protocol) as position feedback and provided with a 24VDC holding brake.

The Allen-Bradley MPL-B330P-MJ74AA MP series servo motor is a low-inertia drive and it contains a frame size of 100 millimeters combined with a magnet rotary stack of 3 inches. The servo motor’s detection mechanism consists of a multi-turn encoder that makes it possible to obtain high-resolution position feedback within 4096 turns. The MPL-B330P-MJ74AA servo motor comes contained in an IP 50 enclosure and it includes a shaft key. Both the shaft keys and the shaft seals provide extra protection against contact with liquids, and these need to be replaced every 3 months. When installing the shaft keys and the shaft seals, they need to be well lubricated because of the material that they are made of. The manufacturer has several recommendations for extending the life of the Allen-Bradley MPL-B330P-MJ74AA MP series servo motor, such as the installation of a shield that covers the whole drive including its housing, shaft, and connections. It is also recommended to maintain proper ventilation around the drive, to avoid overheating, and to create a maintenance plan that includes a regular check-up routine.
