MPL-B430P-MJ72AA

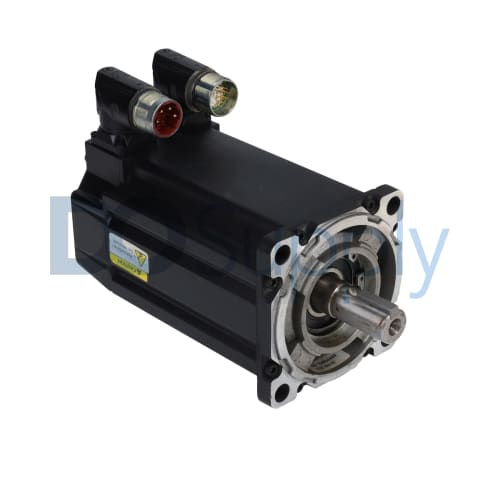

The Allen-Bradley MPL-B430P-MJ72AA is an MP-Series Low Inertia servo motor. Being part of the MP-series, this motor has a high-output brushless design and specifically engineered to reduce size of the motor while increasing the output Torque.

The MPL-B430P-MJ72AA comes with a rated speed of 5000 RPM and delivers and output power of 2.2 kW. It has a Rotor inertia 0.00038 kg-m2 or 0.0033 lb-in.-s2. It has a continuous stall Torque of 6.55 Nm or 58 lb-in.; Peak stall Torque of 19.8 Nm or 175 lb-in.; Continuous stall current of 9.2 Amperes (0-peak) and Peak Stall current of 32.0 Amperes (0-peak). This servo motor is part of the 400 V class, particularly designed for a nominal supply voltage of 460VAC. It is a Frame 4 motor, with magnet stack length pf 76.2 mm or 3.0 in. and provided with Circular (SpeedTec) DIN connector, right angle which is rotatable up to 180°. For position feedback, this servo motor uses a multi-turn high resolution encoder and comes with a shaft key without a shaft seal. Applicable shaft seal kit for use with the MPL-B430P-MJ72AA is MPL-SSN-A4B4. When installed with the optional shaft seal, this motor achieves IP 66 rating where dust tight, powerful water jets and room temperature water is prevented from entering the device. Without a shaft seal, the motor is rated IP53, IP 51 and IP 50, depending on the motor orientation.

This Servo motor has an operating temperature requirement of 0-40 °C or 32-104 °F while storage temperature is 30-70 °C or -22-158 °F. Additionally, this motor must be stored in a noncorrosive environment.

The operating temperature of the MPL-B430P-MJ72AA servo motor ranges from 32 to 104 degrees Fahrenheit or from 0 to 40 degrees Celsius. The environmental ratings of the MPL-B430P-MJ72AA are an IP66 enclosure which is waterproof against heavy sprays of water and dust tight with an optional shaft keyed extension and a relative humidity range of 5 to 95%, non-condensing. The speed of this powerful motor is 5000 RPM and has a SpeedTEC DIN connector with a rotatable right angle of 180 degrees. This low-inertia motor comes with a 460 Volts AC voltage rating and 2.2 kW of output power. The Allen-Bradley MPL-B430P-MJ72AA low-inertia motor is also capable of operating with a constant shaft load. The axial load force of the motor is rated at 15 kilograms (42 pounds) maximum radial load and it has 25 kilograms (55 pounds) Zero radial load. Whereas, the ratings of the radial load force are 49 kilograms (109 pounds). Allen-Bradley servo motors are offered with continuous and peak stall torque capabilities. This highly-dynamic servo motor has a peak stall torque of 19.8 Nm (175 pounds on an inch) and a continuous stall torque of 6.55 Nm (58 pounds on an inch). The continuous stall current rating is 9.2 Amps (0 peak) and the peak stall current rating is 32 Amps (0 peak). Other specifications of the motor include a stack length of 30 (76.2 millimeters or 3.0 inches), a Frame Size of 4, and free mounting holes (Type F). It has no brake. Moreover, the Allen-Bradley MPL-B430P-MJ72AA servo motor is usually used with the Ultra3000, Kinetix 7000, Kinetix 2000 and the Kinetix 6000 servo drive series.
