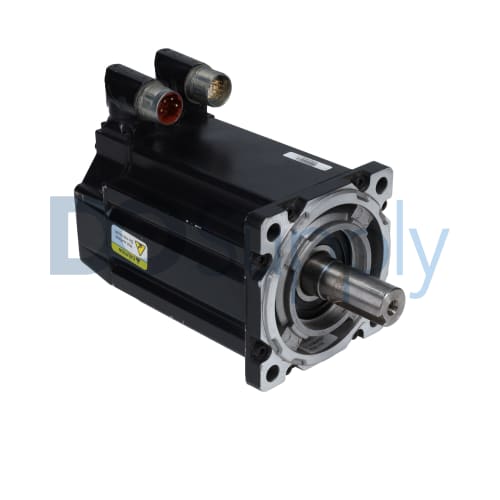

MPL-B4530K-SJ72AA

The MPL-B4530K-SJ72AA servo motor belongs to the series of premium permanent magnet rotary servo motors manufactured by Allen-Bradley. It is rated at 460 Volts AC, 4000 revolutions per minute, 2600 watts, 0.00040 kg-m2 rotor inertia, 8.25 N-m of stall torque, and 11 Amps of continuous stall current. Its feedback device is a single-turn high-resolution encoder for smooth performance and control.  The connector options available on the MPL-B4530K-SJ72AA servo motor are circular rotatable DIN connectors that allow for the flexible orientation of cables for power, signal, and feedback devices. The innovative design, winding technology, and rare-earth magnets integrated into the MPL-B4530K-SJ72AA servo motor meet the requirements of motion systems that require more power in a smaller package.

Quicker acceleration, higher torque performance, and a smaller motor frame size distinguish the MPL-B4530K-SJ72AA low-inertia servo motor from conventional servo motors. It has a 130-millimeter frame and its coils are designed to produce up to 40% higher torque per unit than traditional servo motors. The shaft key supplied with this motor securely connects the couplings and pulley mechanisms that are used in connecting the servo motor to machines. This servo motor has a 3-inch magnetic stack length. It is compatible with continuously flexing, environmentally sealed cables as well as with the Allen-Bradley MPL-SSN-A5B5 shaft seal kits. The motor winding insulation material used in the MPL-B4530K-SJ72AA servo motor provides better thermal management and heat transfer to ensure the range of the servo motor’s operating temperature is not exceeded and to maintain optimal performance. The MPL-B4530K-SJ72AA servo motor is not equipped with a DC brake so the users may need to install external braking mechanisms if required by the applications.
