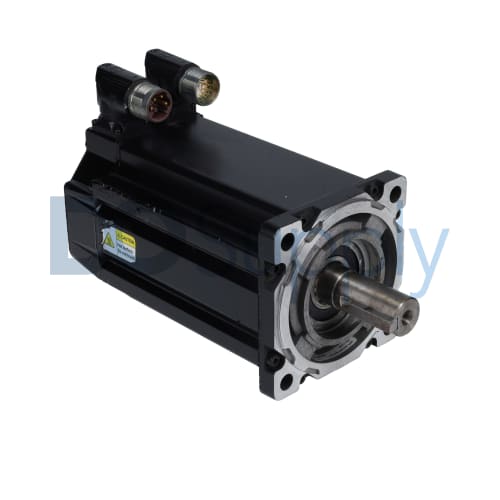

Allen Bradley MPL Servo Motors MPL-B4540F-MJ72AA

Product image is representative; revision or series may vary. Contact us to request a specific version.

MPL-B4540F-MJ72AA

|
Need a Specific Revision?

This Allen Bradley 165 millimeter low rotor inertia smart motor is a 3000 rpm rated servo motor. Also, it comes w/o braking included on the servo. This MPL premium permanent-magnet servo motor has a magnetic stack length of 4 inch. In addition, it has circular DIN (180 degrees rotatable) cable connectors that are built onto this servo motor and a shaft key, with no shaft seal installed on the servo to allow for connecting to this motor. This AC synchronous servo motor has a multi-turn high-resolution (1024 sin/cos) encoder.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for MPL-B4540F-MJ72AA

ManufacturerAllen Bradley
CategoryMotors
Product LineMPL Servo Motors
Part NumberMPL-B4540F-MJ72AA
UPC820919983832
Weight20.00 lbs (9.07 kg)
SeriesPremium permanent magnet rotary servo motor
Series TypeLow-inertia
Voltage Class400 Volts AC
Frame Size130 millimeters
Magnetic Stack Length4 inches
Rated Speed3000 rpm
FeedbackMulti-turn high-resolution encoder
Shaft Key/SealShaft key/no shaft seal
ConnectorsCircular DIN, right angle, 180 degrees rotatable
BrakeNo brake
Mounting FlangeIEC metric
Factory Designated OptionsStandard
View as PDF
Request a Repair

The MPL-B4540F-MJ72AA servo motor from Allen-Bradley’s low-inertia MPL series is an AC servo motor. It can be used in combination with servo drives from Allen-Bradley including the Kinetix 7000, Ultra 3000, and the Kinetix 6000 servo motor. The applications for which the MPL series is well-suited include electronic assembly, automotive, and material handling applications. The low-inertia MPL series offers a wide range of features which makes it highly attractive for a wide variety of applications. These features include low rotor inertia, 0.16 to 18.6 kilowatts of motor power and a rated speed of up to 8000 rpm.

The MPL-B4540F-MJ72AA servo motor belongs to the 400 Volts AC winding class and it delivers a maximum speed of 3000 rpm. The rotor inertia for the servo motor is 0.00052 kg-m2. The specifications for the peak and continuous stall torque are 90 and 240 pounds on an inch, respectively. The motor delivers 2.6 kilowatts of output power. The axial load force on the motor shaft at 500, 2000, and 3000 RPM is 49, 27, and 22 kilograms, respectively. The frame size of the MPL-B4540F-MJ72AA servo motor is 130 millimeters. Its magnet stack length is 101.6 millimeters. The integrated features provided on the MPL-B4540F-MJ72AA servo motor include a 1024 sin/cos absolute multi-turn encoder with Hiperface protocol support, a shaft key, an IEC metric flange, with type FF holes, and a 180-degree rotatable circular DIN connector. Features that are not available on the MPL-B4540F-MJ72AA servo motor include a motor brake and a shaft seal. However, both the shaft seal and motor brake can be added to the motor if required as options kits because both are available from Allen-Bradley.

Revision Part #Also known as
MPL-B4540F-MJ72AA Ser AMPL-B4540F-MJ72AA/A, Series A, Rev A
Don't see your particular revision? Contact us now.
