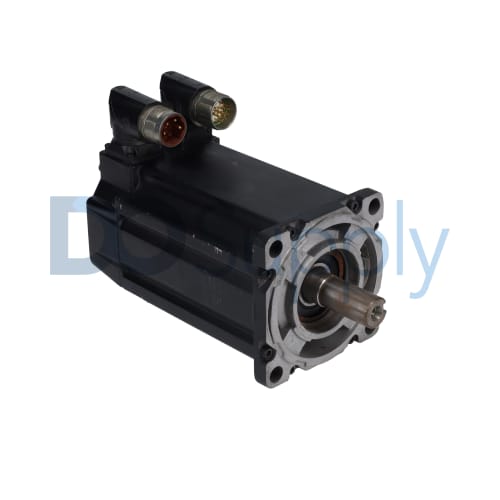

MPL-B4540F-SJ22AA

The Allen-Bradley MPL-B4540F-SJ22AA servo motor is part of the low-inertia series of permanent magnet rotary servo motors. This servo motor falls in the 400 Volts AC voltage class, with a frame measuring 130 millimeters and with 4 inches of magnetic stack. It also features 3000 rpm of rated motor speed. Other specifications of the Allen-Bradley MPL-B4540F-SJ22AA servo motor include high-resolution single-turn encoder feedback, an IEC metric mounting extension, and a rounded bayonet connector and shaft-facing connectors, but no brake. This permanent magnet rotary servo motor has a standard factory-specified option that is specially made for use in industrial environments. Generally, the MP-series low-inertia motors are available in input voltage ratings of 230 Volts AC or 460 Volts AC. Further, they come in with constant stall torque ranging between 0.26 and 163 N-m or 0.26 or 141 N-m, and an output rating range between 0.16 and 5.3 kilowatts or 0.16 and 13 kilowatts. The MPL-B4540F-SJ22AA servo motor and the entire MP-series low-inertia motors feature a constant stall current ranging between 1.1 and 42 Amps or 0.95 and 105 Amps.

The Allen-Bradley MPL-B4540F-SJ22AA servo motor can be used in applications that require high power in a small package. Like other low-inertia servo motors in the MP-series, the MPL-B4540F-SJ22AA servo motor can also be used in industrial applications such as packaging, electronics assembly, automotive, metalworking, and material handling applications. This servo motor also comes with a smart motor technology feature. It has an onboard memory which helps in retaining the motor’s position. Additionally, it has a communication link that instantaneously reports the status of the servo motor to the machine system during startup for a reduced commissioning time.
