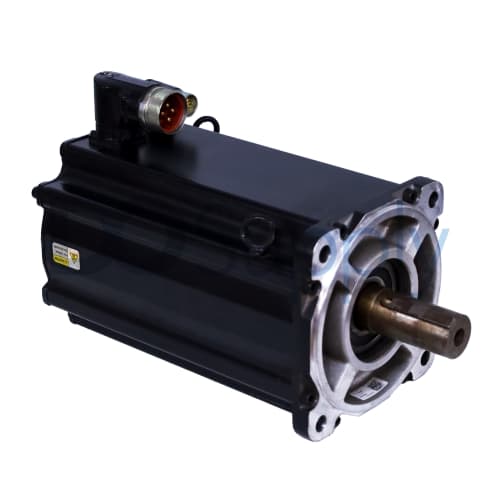

MPL-B680H-MJ72AA

The MPL-B680H-MJ72AA rotary servo motor is available from the MPL series by Allen-Bradley/Rockwell Automation. This servo motor has an innovative design and a high torque output. This servo motor is designed for use in harsh industrial environments and it is fully compatible with Allen-Bradley Kinetix 5500 to 7000 servo drives. Servo motors such as the MPL-B680H-MJ72AA servo motor are CE marked devices and they are built to meet standards such as the CSA and UL standards. This servo motor features smart motor technology that helps in retaining the motor identity through an onboard memory that is vital for specific applications. Other advantages that this servo motor has are quicker acceleration due to the use of rare-earth magnets, special winding insulation material for better heat management, and the standard IEC 72-1 dimensions for mounting.

The MPL-B680H-MJ72AA industrial servo motor provides high levels of performance and it has a feedback functionality that includes an absolute multi-turn feedback encoder with 1024 sin/cos of output value. The MPL series of servo motors offers other feedback options from which the users can choose if required. The voltage class of the servo motor is 400 Volts AC while its power rating is 7.5 kilowatts. It is important to mention that the MPL-B680H-MJ72AA servo motor has a rated speed of 2000 rpm and it can achieve a stall torque between 60 to 146.9 N-m. In addition to that, the rotor inertia of this particular servo motor is 0.00775 kilograms per square meter. The MPL-B680H-MJ72AA servo motor weighs around 40.4 kilograms (89 pounds) and it comes with a shaft key with no shaft seal, SpeedTec circular DIN connectors (right angle), and basic control options from the factory. The frame of the servo motor is 215 millimeters while the length of its magnet stack is 203.2 millimeters (8 inches).
