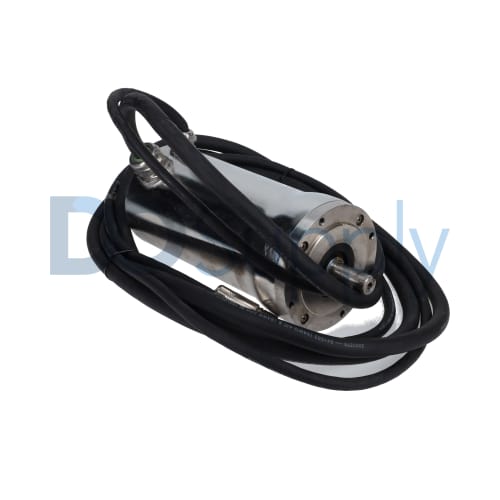

MPS-B330P-MJ54DA

Manufactured by Allen-Bradley, the MPS-B330P-MJ54DA MP Series brushless AC synchronous servo motor is specifically designed for use in sterile environments with high-pressure as well as in highly acidic wash-down applications and it also runs on low rotor inertia. Some of the compatible servo drives for this motor include the Kinetix 5500, Kinetix 6200/6500, 6000, 300/350, 2000 and the Ultra 3000 servo drives. They are available with motor rated outputs of 1.3 to 3.5 kW. The MPS-B330P-MJ54DA has a speed of 3000 to 5000 rpm. The Allen-Bradley MPS-B330P-MJ54DA Stainless Steel Motor features different environmental ratings such as IP66/IP67 with a standard shaft seal and ecologically sealed cable connectors and the IP69K for a 1200 psi washdown.

This product features a smooth, passivized cylindrical exterior made of 300 Series stainless-steel. It is also certified and listed with the NSF/ANSI Standard 169. MPS-B330P-MJ54DA to operate on 200 Volts and 400 Volts class windings. It comes with a shaft-end threaded hole, as well as cable extensions measuring 3 meters in length. It has standard IEC 72-1 mounting dimensions. The Bulletin MPS or MP-Series stainless-steel motors are specially designed and intended to provide unique needs for hygienic settings. The MPS-B330P-MJ54DA delivers the benefit of Kinetix integrated motion to a variety of applications, thus allowing the use of servo motors in high-pressure environments as well as in highly acidic washdown environments. These MP-Series stainless-steel motors cover a wide range of Allen-Bradley servo motors in new applications with the beverage, food, dairy, brewing, pharmaceutical, and beauty industry manufacturing equipment.
