TLY-A130T-HK62AN

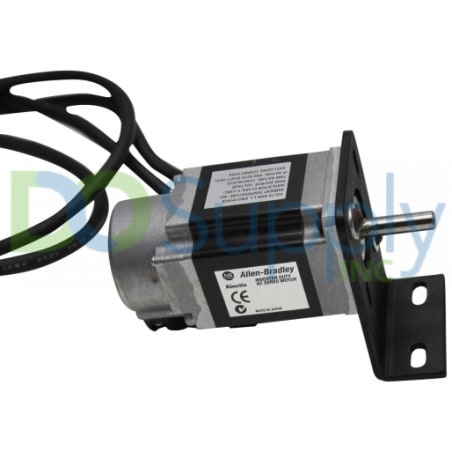

The TLY-A130T-HK62AN servo motor is a TL-Series (TLY) low-inertia servo motor manufactured by Allen-Bradley. Its speed rating is 6000 revolutions per minute, 0.000003 kg-m2 of rotor inertia, and its output power rating is 0.14 kilowatts. Other specifications of this motor include 230 Volts AC voltage, 0.235 N-m of continuous stall torque, 0.76 N-m of peak stall torque, 1.85 Amps of continuous stall current, and 4.9 Amps of peak stall current. It weighs 0.5 kilograms and it features a 2000-line/revolution incremental encoder for feedback. The TLY-A130T-HK62AN servo motor features a NEMA mounting flange and shaft, and its frame size is 46 millimeters. The TLY-A130T-HK62AN servo motor is designed for use in different applications, including semiconductor, electronic assembly, and material handling applications. It provides a high level of load-to-motor rotor inertia while maintaining a stable system and its advanced stator design provides high torque density despite the compact size of the motor. It features 1-meter leads with circular plastic connectors.

The TLY-A130T-HK62AN servo motor provides a cost-effective yet efficient Kinetix integrated motion solution when it is connected with a CompactLogix L43 Controller and a Kinetix 2000 drive. The Allen-Bradley TLY-A130T-HK62AN servo motor has an IP 65 rated housing. It features a non-volatile memory onboard to retain the motor’s identity and it automatically transmits the motor’s identity when it is connected to other drives, thereby reducing the commissioning time. This motor does not feature a shaft key or a shaft seal. Its operating temperature rating is 0 to 40 degrees Celsius. It can be used in environments with a 20% to 85% relative humidity rating (non-condensing).
