TLY-A230T-HK64AA

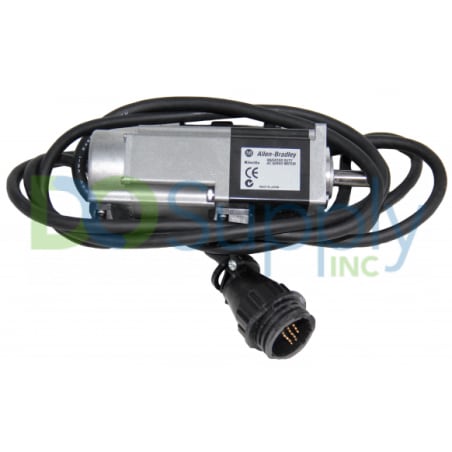

The TLY-A230T-HK64AA is a servo motor device that is designed and manufactured by Allen-Bradley. It comes from the TLY family of Allen-Bradley Kinetix Rotary motion servo motor and it is a low-inertia motor. The voltage rating for this servo motor is 230 Volts AC. It is built inside a 70 millimeters bolt circle and the enclosure is rated with the  NEMA 23 size. It comes with an IP65 rating for the housing of the motor device. This means that the device is protected against dust and against water projected from a nozzle. The TLY-A230T-HK64AA consists of magnetic stack length of 30. The motor has an operational rated speed of 6000 RPM and for braking purposes, a 24 Volts DC braking system is available in this variant of the Allen-Bradley servo motor. No shaft key or shaft seal is present with this servo motor.

The TLY-A230T-HK64AA has an excellent feedback system. It has an incremental encoder of 2000 lines for feedback purpose. The feedback can be directly passed to the users. It comes with circular plastic connectors. These devices are used to control the linear/angular position, acceleration, and velocity of a device by taking in information about the position of the shaft inside the servo motor. The minimum operating temperature for this motor is 0 degrees Celsius and the maximum operating temperature is 40 degrees Celsius. The relative humidity of the operating environment should be non-condensing at a maximum level of 85%. Before the installation of the TLY-A230T-HK64AA, the environment should be made non-corrosive. Devices that generate or dissipate heat should be removed from the surrounding area. The environment should be clean and dry. It comes certified with various standards like the CE, C-Tick, UL, and the CSA. It is widely used in various sectors. It is used in printing, automated machinery, packaging, and also in the food and beverage industry.
