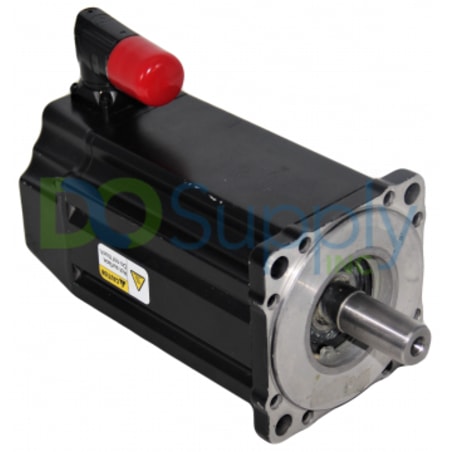

Product image is representative; revision or series may vary. Contact us to request a specific version.
VPL-A1153C-PK12AA
The Allen-Bradley VPL-A1153C-PK12AA servo motor is a brushless servo motor that operates with low inertia levels and permanent magnet technology. It is a member of the Allen-Bradley VPL Servo Motors series and a member of the 200 Volts voltage class within the series. The VPL-A1153C-PK12AA brushless servo motor draws its feedback from an encoder which is an 18-bit absolute multi-turn digital encoder that supports the Hiperface DSL protocol. This motor has a smooth shaft with no key. The VPL-A1153C-PK12AA brushless servo motor can sustain a shaft rotation speed of 2500 RPM.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for VPL-A1153C-PK12AA
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Low-inertia Servo Motor |
| Product Line | VPL Servo Motors |
| Part Number | VPL-A1153C-PK12AA |
| Weight | 10.06 lbs (4.56 kg) |
| Voltage | 200V |
| Frame Size | 115 mm |
| Rated Speed | 2500 rpm |
| Magnet Stacks | 3 |
| Feedback | 18-bit absolute multi-turn digital encoder (Hiperface DSL protocol) |
| Shaft | Smooth |
| Connector | Single SpeedTec DIN connector, right angle, 325° rotatable |
| Mounting Flange | IEC metric, free mounting holes (type FF) |
| Factory Options | Standard |
The Allen-Bradley VPL-A1153C-PK12AA servo motor is a VP series low-inertia servo motor. VP series motors are available with winding options that are matched to ratings for Kinetix 5700 dual-axis invertors and Kinetix 5500 drives. Typical applications for VP series motors are converting, packaging and automotive. The VPL-A1153C-PK12AA servo motor belongs to 200 Volts AC winding class. The motor frame size (Bolt Circle diameter) is 115 millimeters and the motor has three magnet stacks. Peak and rated motor speed is 2500 RPM. The VPL-A1153C-PK12AA servo motor comes with an 18-bit multi-turn encoder (with the Hiperface DSL protocol) which provides feedback within 4096 turns. The electro-mechanical encoder design obviates the need for a battery. The motor shaft is smooth (keyless). The cable connector is a SpeedTec right-angle DIN connector which is 325 degrees rotatable. Due to the unique cable design, the use of third-party cables is not an option. A holding brake is not provided on the motor. The flange type is IEC metric.
The rotor inertia for the VPL-A1153C-PK12AA servo motor is 0.00038 kg-m2. The continuous and maximum stall torque specifications are 6.55 N-m and 20.33 N-m, respectively. The approximate weight of the motor is 13.23 pounds. The rated output power for the motor is 1.81 Horsepower. The environmental rating for the VPL-A1153C-PK12AA servo motor is IP 50, which can be improved to IP 66 through the installation of optional shaft seal and the use of sealed cable connectors. A DC brake is also available as an option from the manufacturer. The recommended ambient temperature range for motor storage is from -30 to 40 degrees Celsius. The ambient temperature range for motor operation is from 0 to 40 degrees Celsius.
| Revision Part # | Also known as | |
|---|---|---|
| VPL-A1153C-PK12AA Ser A | VPL-A1153C-PK12AA/A, Series A, Rev A | |
| Don't see your particular revision? Contact us now. | ||
- VPL-A1153C-PKI2AA
- VPL-A1I53C-PK12AA
- VPL-AI153C-PK12AA
- VPL-AII53C-PKI2AA
- VPLA1153CPK12AA
- VPLA1153CPKI2AA
- VPLA1I53CPK12AA
- VPLAI153CPK12AA
- VPLAII53CPKI2AA
The Allen-Bradley VPL-A1153C-PK12AA Low-inertia Servo Motor has a 200V Voltage and a 2500 rpm Rated Speed. It also contains a 115 mm Frame Size and an IEC metric, free mounting holes (type FF) Mounting Flange.
