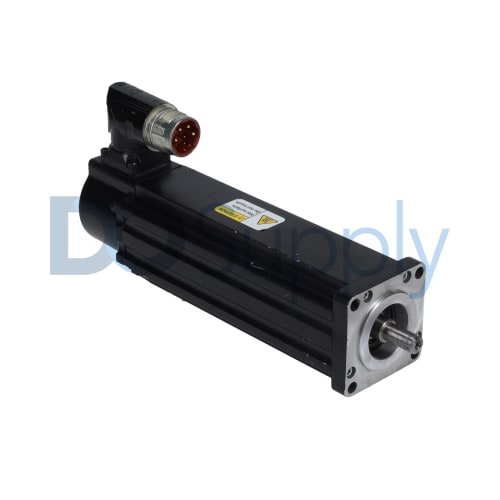

Allen Bradley VPL Servo Motors VPL-B0633T-PK14AA

Product image is representative; revision or series may vary. Contact us to request a specific version.

VPL-B0633T-PK14AA

|
Need a Specific Revision?

The Allen-Bradley VPL-B0633T-PK14AA servo motor is a low-inertia brushless servo motor. It is a member of the Allen-Bradley VPL series of brushless servo motors and it is part of the 400 Volts voltage class within the VPL series. The VPL-B0633T-PK14AA low-inertia brushless servo motor can be controlled by Allen-Bradley Kinetix 5500 and Kinetix 5700 series servo drives. It does not come with a shaft key or shaft seal, but it has a 24 Volts DC holding brake and a multi-turn digital encoder. The VPL-B0633T-PK14AA low-inertia servo motor also comes with an IEC metric type of mounting flange and a SpeedTec DIN connector.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for VPL-B0633T-PK14AA

ManufacturerAllen Bradley
Product TypeLow-Inertia Servo Motor
Product LineVPL Servo Motors
Part NumberVPL-B0633T-PK14AA
UPC887172380952
Weight5.00 lbs (2.27 kg)
Voltage400 Volts AC
Frame Size63 millimeters
Rated Speed6750 RPM
Magnet Stacks3
Feedback18-bit absolute multi-turn digital encoder (Hiperface DSL protocol)
ShaftSmooth
ConnectorSingle SpeedTec DIN connector, right angle, 325° rotatable
Mounting FlangeIEC metric, free mounting holes (type FF)
Factory OptionsStandard
Brake24 Volts DC
Request a Repair

The VPL-B0633T-PK14AA is a low-inertia servo motor manufactured by Allen-Bradley. The Allen-Bradley VPL-B0633T-PK14AA servo motor is part of the VPL Series of servo motors. The Allen-Bradley VPL-B0633T-PK14AA servo motor features a 400 Volts AC voltage rating, 6750 RPM rated speed, 1.27 N-m torque rating, a 24 Volts DC holding brake, a keyless shaft, 3 magnet stacks, and an 18-bit single-turn and a 12-bit multi-turn digital high-resolution encoder. The Allen-Bradley VPL-B0633T-PK14AA servo motor is contained in an IP50 Enclosure. The Allen-Bradley VPL-B0633T-PK14AA servo motor cables are restrained during installation to prevent uneven flexing or tension at the cable connectors. The operator is recommended to provide supports by placing them at 10-foot intervals throughout the cable alignment. The servo motor users should mount the O-ring on the Speed Tec-ready DIN connector when using the threaded DIN cable plugs. The users should align the Allen-Bradley VPL-B0633T-PK14AA servo motor keyed connectors and tighten them by hand to the prescribed number of turns.

If the operators find it difficult to tighten the Allen-Bradley VPL-B0633T-PK14AA servo motor connectors by hand, they are recommended to check that the keyed connectors are correctly aligned. The servo motor operators should not use tools such as vise-grips and pliers for tightening the connectors. The motion system monitors the thermal switch signals, which is a mandatory operation when ATEX ratings are configured with the Allen-Bradley VPL-B0633T-PK14AA servo motor. The intrinsic safety protection technique in the ATEX directions section 94/9/EC should be actuated by connecting the thermal switch signals from the Allen-Bradley VPL-B0633T-PK14AA servo motor to the motion control unit. The Allen-Bradley VPL-B0633T-PK14AA servo motor is capable of operating with a sustained shaft load. Third-party shaft seals are not recommended to be used with the Allen-Bradley VPL-B0633T-PK14AA servo motor. The shaft seal serves as a barrier for preventing particles and moisture from entering the Allen-Bradley VPL-B0633T-PK14AA servo motor bearings.

Revision Part #Also known as
VPL-B0633T-PK14AA Ser AVPL-B0633T-PK14AA/A, Series A, Rev A
Don't see your particular revision? Contact us now.
