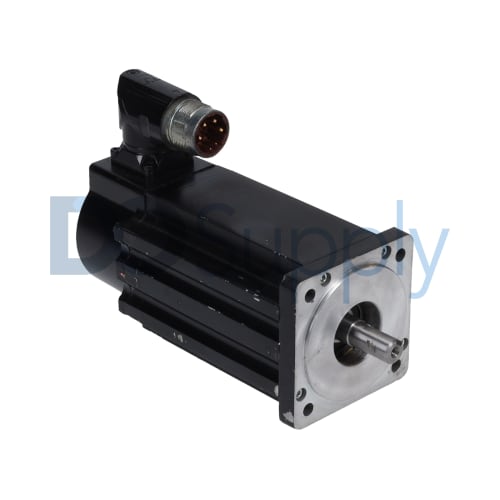

Allen Bradley VPL Servo Motors VPL-B0752F-PJ12AA

Product image is representative; revision or series may vary. Contact us to request a specific version.

VPL-B0752F-PJ12AA

|
Need a Specific Revision?

At 400V, the Allen-Bradley VPL-B0752F-PJ12AA servo motor is engineered for precision in low-inertia applications. It is optimized for high performance with a compact frame of 75 mm and a rated speed of 4500 rpm.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for VPL-B0752F-PJ12AA

ManufacturerAllen Bradley
Product TypeLow-inertia Servo Motor
Product LineVPL Servo Motors
Part NumberVPL-B0752F-PJ12AA
UPC884951972506
Weight4.50 lbs (2.04 kg)
Voltage400V
Frame Size75 mm
Rated Speed4500 rpm
Magnet Stacks2
Feedback18-bit absolute multi-turn digital encoder (Hiperface DSL protocol)
ShaftShaft Key
ConnectorSingle SpeedTec DIN connector, right angle, 325° rotatable
Mounting FlangeIEC metric, free mounting holes (type FF)
Factory OptionsStandard
Request a Repair

The VPL-B0752F-PJ12AA from Allen-Bradley is a low-inertia servo motor designed for high-speed applications. It operates efficiently at 400 volts and has a frame size of 75 mm. Capable of reaching speeds of up to 4500 rpm, it provides a high level of responsiveness and performance in various settings.

The motor consists of two magnet stacks, which contribute to enhanced torque and efficiency during operation. Feedback is managed through an 18-bit absolute multi-turn digital encoder verified to the Hiperface DSL protocol, ensuring accurate positional data throughout its use.

Its shaft features a key that secures it firmly during operation, preventing unwanted movements. For connectivity needs, the motor is equipped with a single SpeedTec DIN connector, which is positioned at a right angle and can rotate 325°, offering flexibility in installation.

The mounting flange complies with IEC metric standards and includes free mounting holes (type FF), which streamline the installation process and make it adaptable to various setups. The VPL-B0752F-PJ12AA motor also comes with standard factory options, ensuring it meets the requirements of numerous applications.

Revision Part #Also known as
VPL-B0752F-PJ12AA Ser AVPL-B0752F-PJ12AA/A, Series A, Rev A
Don't see your particular revision? Contact us now.
