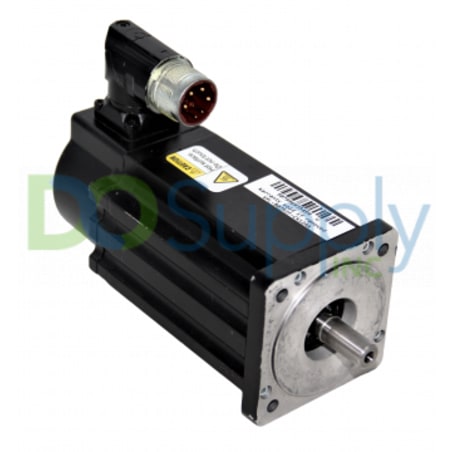

Allen Bradley VPL Servo Motors VPL-B0752F-PJ12AS

Product image is representative; revision or series may vary. Contact us to request a specific version.

VPL-B0752F-PJ12AS

|
Need a Specific Revision?

The VPL-B0752F-PJ12AS is a low-inertia servo motor within the Allen-Bradley VPL series. It operates at 400 volts and can achieve speeds of 4500 rpm, which is ideal for precise control applications. This motor features two magnet stacks and includes advanced feedback from an 18-bit absolute multi-turn digital encoder utilizing the Hiperface DSL protocol.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for VPL-B0752F-PJ12AS

ManufacturerAllen Bradley
Product TypeLow-inertia Servo Motor
Product LineVPL Servo Motors
Part NumberVPL-B0752F-PJ12AS
Weight10.00 lbs (4.54 kg)
Voltage400V
Frame Size75 mm
Rated Speed4500 rpm
Magnet Stacks2
Feedback18-bit absolute multi-turn digital encoder (Hiperface DSL protocol)
ShaftShaft Key
ConnectorSingle SpeedTec DIN connector, right angle, 325° rotatable
Mounting FlangeIEC metric, free mounting holes (type FF)
Factory OptionsShaft Seal
Request a Repair

In the realm of automation, the Allen-Bradley VPL-B0752F-PJ12AS servo motor stands out for its precision and efficiency. With a voltage requirement of 400V, this low-inertia servo motor is designed for high-performance tasks and operates effectively at a rated speed of 4500 rpm.

Constructed with a frame size of 75 mm, this unit incorporates two magnet stacks for improved torque performance. An 18-bit absolute multi-turn digital encoder, compliant with the Hiperface DSL protocol, provides reliable feedback for system precision. The design features a shaft key, ensuring a secure connection in mechanical systems.

For connection points, the motor includes a right-angle SpeedTec DIN connector that allows up to 325° of rotational flexibility, accommodating various installation conditions. Furthermore, the IEC metric mounting flange offers free mounting holes (type FF) for straightforward integration into existing frameworks.

Additionally, a factory option for a shaft seal is available, which enables the motor to operate effectively in more demanding environments and enhances its utility across a wide range of applications.

Revision Part #Also known as
VPL-B0752F-PJ12AS Ser AVPL-B0752F-PJ12AS/A, Series A, Rev A
Don't see your particular revision? Contact us now.
